Read...

In order to contrast temperature patterns in the tropics with those in the middle latitudes, allow me to briefly employ an analogy. It might sound a little bizarre, but I'm going to liken temperatures in the tropics and middle latitudes to human personality types. One theory of human personality defines two types -- Type A and Type B (opens in a new window). In a nutshell, people with a "Type A" personality are "high-strung," obsessed with details and organization, and somewhat rigid. "Type B" personalities on the other hand, are more laid back, "go-with-the-flow" types. They're less stressed out about organization and details.

If I could label the middle latitudes with a human personality, I would probably rate them "Type A". Recall that the middle latitudes mark the region where advancing warm and cold air masses invariably collide. Like a typical "Type A" personality, the middle latitudes seem to be obsessed with organization, dutifully structuring the lower troposphere into narrow zones of relatively large temperature gradients (cold, warm, and stationary fronts). The middle latitudes are constantly trying to manage their temperature gradients in an attempt to be as "organized" as possible.

In contrast, the tropics have a "Type B" personality. As a general rule, horizontal temperature gradients are weak and much more "laid back". To understand why, let's start with the short background video below. In case you're wondering, the values of absorbed solar and emitted infrared radiation plotted in the video represent latitudinal (sometimes called "zonal") averages.

The Tropics and Earth's Energy Budget (2:18)

We can confirm the great emission of infrared radiation from the tropics discussed in the video by viewing plots of outgoing longwave radiation (OLR). For the record, OLR is most intense where surface temperatures are the greatest, such as hot subtropical deserts (the Sahara, for example) during summer. In contrast, OLR is the least intense where it's colder, either because the ground is cold or because deep convection is present. That's because cloud tops in areas of deep convection are high and cold and thus weakly emit longwave (infrared) radiation.

If we look at the long-term average of OLR across the globe (below), we can see the general pattern described in the video. The blazing hot Sahara Desert in northern Africa is clearly an area of high OLR values (some of the highest on Earth, denoted by dark purples), while other tropical areas frequently characterized by deep convection (like the Amazon River Basin in northern South America) have lower values. OLR charts have lots of other practical applications for studying trends in cloudiness and rainfall over the tropics (if you're interested in checking out the variety of OLR products available, check out the Physical Sciences Laboratory page of OLR plots (opens in a new window)).

Credit: Physical Sciences Laboratory

The relatively large losses of infrared energy to space over the tropics only partially offset major-league solar heating, resulting in a broad surplus of energy (shaded in red in the graph in the video) that varies little with latitude between 30 degrees north and south. This relatively even distribution of surplus energy across the tropics accounts, in part, for the general lack of moderate to strong horizontal temperature gradients in the tropical troposphere.

One other reason for the generally weak temperature gradients at low latitudes is that the water covers approximately 75 percent of the tropics. That means that the uniform surplus of energy in the tropics gets distributed over large expanses of water, thus further limiting opportunities for strong temperature gradients to form (cold air traveling over relatively warm ocean waters gets rapidly modified).

The image below represents the long-term average of annual surface air temperatures across the globe. I point out that there are indeed temperature gradients between tropical land masses and surrounding oceans, but the overall pattern of temperature gradients in the tropics is weak compared to those at higher latitudes. Now I readily admit that any annual average in temperature tends to "wash out" strong signals of gradients in winter, so if you toggle the image slider below, you can see global surface temperatures for a single day in late January.

On this winter day, sharp temperature gradients existed over eastern North America, for example, on the fringe of a continental Arctic air mass. Now, compare them to the flabby gradients over the tropics. No contest, wouldn't you agree? Notice that there are some sharper gradients along the outer fringes of the tropics near 30 degrees north. These larger gradients near 30 degrees are not unusual, given that Arctic air masses drive farther south in winter (occasionally into the fringes of the tropics). In the heart of the tropics, however, gradients are weak by almost any standard.

The lack of large temperature gradients does not stop at the surface, of course. At 500 mb, for example, the lack of strong temperature gradients over the tropics is striking compared to the middle latitudes (check out the annual climatology of 500-mb temperatures across the globe below). So, with regard to temperature gradients, the tropical troposphere has a completely different personality than the middle latitudes.

Credit: Physical Sciences Laboratory

I hope the analogy to personality types helps you to understand the different nature of temperature patterns in the tropics and middle latitudes, but now it's time to get a bit more formal. How do we formally describe these different "personalities" of the middle latitudes and the tropics? Meteorologists formally refer to the "Type A" middle latitudes as baroclinic and the "Type B" tropics as barotropic. In the broadest terms, a baroclinic atmosphere is one where horizontal temperature gradients prevail. The middle latitudes, for example, are highly baroclinic during winter, when large horizontal temperature gradients often set the stage for strong temperature advection (opens in a new window). A barotropic atmosphere, on the other hand, is one in which temperature advection is pathetically weak. In the presence of wind, that means that horizontal temperature gradients must be very small. For all practical purposes, the tropics are bereft of horizontal temperature gradients, so "barotropic" best describes the tropical atmosphere.

Recall from the video discussing absorbed solar and emitted infrared radiation versus latitude that, while the tropics run a surplus in energy, the middle and polar latitudes run a deficit. Thus, to balance the ledger of the earth-atmosphere system, it is pretty obvious that there must be a transfer of heat energy poleward from the tropics. This transfer is accomplished by the meridional transport (opens in a new window) of heat energy by the atmosphere and the oceans. You may already be familiar with some mechanisms for this transport, such as the Gulf Stream (opens in a new window) (an ocean current that conveys heat energy northward from low latitudes).

As far as atmospheric transport of heat energy goes, there are several mechanisms working to export heat energy out of the tropics, which we'll explore in later lessons. For now, though, recall that large mid-latitude cyclones are very effective at transporting warm air northward and cold air southward with their broad circulations. Given the large north-south temperature gradients that prevail in the middle latitudes during the cold season, the large impacts on regional temperatures from strong advection qualify mid-latitude cyclones as "big business" in the world of heat transport. Is the same true for tropical cyclones? Not really. Tropical cyclones transport some heat energy and moisture from the tropics to higher latitudes, but their overall contribution pales in comparison to other transport mechanisms. If you're interested, check out the Explore Further section below for more on this topic and another peculiarity that arises from the barotropic nature of the tropics. Otherwise, check your knowledge of the basics of tropical temperatures in the Quiz Yourself section below before you begin exploring another aspect of the "Type B" behavior of the tropics on the next page.

Read...

Just as the tropics display a "Type B" personality with respect to temperatures, they generally maintain that same personality when it comes to pressure. In the tropics, pressure gradients tend to be much more relaxed than they do in the "Type-A" middle latitudes (resuming our analogy from the previous page).

Indeed, the relatively small temperature gradients over the tropics go hand in hand with relatively small pressure gradients, just as the larger temperature gradients in the mid-latitudes go along with larger pressure gradients there. To get a feel for the relaxed pressure gradients and other key aspects of pressure patterns in the tropics compared to the mid-latitudes, check out the short video below.

Tropical Pressure Patterns (2:32)

The overwhelming message from the video is that pressure gradients are typically weak across the tropics, while the main "flies in the ointment" seem to be tropical cyclones. Indeed, tropical cyclones do something that is unheard of in the middle latitudes: They form in an environment bereft of large temperature gradients yet somehow develop very large pressure gradients around their center. We'll explore this conundrum a little later in the lesson.

Of course, the small pressure gradients throughout the tropics also mean that changes in surface pressure with time at any given location are usually puny compared to the larger increases and decreases that regularly accompany the approach and passage of mid-latitude high- and low-pressure systems. In the equable tropics, pressure patterns can persist for very long periods (weeks and even months). Yet, almost mysteriously, there is a regular daily rhythm of changes in surface pressure that meteorologists detect in the tropics. If you're intrigued, check out the "Explore Further" section at the end of the page.

The relaxed gradients in the tropics don't stop at the surface. The height patterns on constant pressure surfaces over the tropics are similarly relaxed. Consistent with the general lack of temperature gradients at 500 mb over the tropics that we covered previously, note the absence of strong gradients between 30 degrees latitude (north and south) on the chart of long-term mean 500-mb heights below. Height contours on the other mandatory pressure levels in the tropical troposphere show a similarly relaxed pattern.

Credit: Earth System Research Laboratory

Since the pressure gradient force is a primary driver of wind speed, you might think that the winds are almost always weak in the tropics (outside of tropical cyclones, that is), with the weak pressure gradients at the surface and aloft. But, that's far from the truth! To help you visualize the fact that many places in the tropics are quite breezy, despite weak surface pressure gradients, I'm going to introduce a new type of plot -- the wind rose. Wind roses display the observed frequency of wind directions (and sometimes speeds) at a particular location. On the left below is a histogram displaying frequencies of observed wind speeds (in meters per second) at an ocean buoy moored at 8 degrees South, 95 degrees West (opens in a new window) during a single year. On the right is the corresponding wind rose for the buoy, which shows the frequency of observed wind directions during the same year.

Credit: David Babb @ Penn State is licensed under CC BY-NC 4.0 (opens in a new window)

From these two images, we can quickly get two important messages. First, wind speeds at the buoy were between five and nine meters per second (roughly 10 to 20 mph) the vast majority of the time, which hardly constitutes "weak" winds. Second, the direction from which the wind blew during the year was remarkably consistent. To get your bearings with the wind rose, note that each concentric ring represents a ten-percentage point increase in the relative frequency of the observed wind direction. Thus, the daily mean wind direction of 130 degrees (from the southeast) occurred on nearly 45% of the days, and the daily mean wind direction of 140 degrees occurred on about 28% of the days! The wind rose clearly demonstrates that winds retained their overall southeasterly direction for almost the entire year (and didn't deviate much from 130 degrees). Small variations in wind direction and breezy conditions are fairly typical in tropical locations because of the famous belt of "trade winds," (opens in a new window) which we'll cover formally in a later lesson.

Many wind roses that you'll encounter also include wind-speed data right on the wind rose plot. The short video below walks through an example of how to interpret such wind roses (a Key Skill from this section). The wind rose in the video is from a mid-latitude location; note how much more variable wind directions are compared to our example from the tropics above.

Wind Roses (3:08)

I strongly recommend taking some time to practice extracting information from wind roses (you can start with the "Key Skill" section below). Wind roses can provide lots of practical information. For example, consulting meteorologists use wind roses when they work on the design of airports (runways should be built to avoid strong crosswinds), and skilled forecasters regularly use wind roses when studying the climatology of a particular location. After you're comfortable with interpreting wind roses (and check out the "Explore Further" section, if you wish), you'll be ready to examine another difference between the tropics and the middle latitudes -- the structure of mid-latitude cyclones versus the structure of tropical cyclones.

Read...

Up to this point, you've seen the generic phrase "tropical cyclone" used to describe the low-pressure systems that form over warm tropical seas. However, as you're about to find out, naming and classifying tropical cyclones is somewhat complicated. Before we get into how tropical cyclones are named, let's look at the areas where tropical cyclones tend to form. Do they form just anywhere in the tropics? Not really. As you can see from the image below, the breeding grounds and regions where tropical cyclones typically track can be boiled down to seven areas:

1. Atlantic Basin (the northern Atlantic Ocean, the Gulf of Mexico, and the Caribbean Sea)
2. Northeast Pacific Basin (from Mexico to the International Dateline)
3. Northwest Pacific Basin (from the International Dateline to Asia, including the South China Sea)
4. North Indian Basin (includes the Bay of Bengal and the Arabian Sea)
5. Southwest Indian Basin (from Africa to about 100 degrees east longitude)
6. Southeast Indian/Australian Basin (100 degrees east longitude to 142 degrees east longitude)
7. Australian/Southwest Pacific Basin (142 degrees longitude to about 120 degrees west longitude)

Of these seven areas, the Northwest Pacific and Northeast Pacific basins tend to be the busiest, as this map of global tropical cyclone tracks (opens in a new window) over a 30-year period suggests. Meanwhile, some areas in the tropics are nearly entirely free of tropical cyclones. While tropical cyclones can form outside of the seven areas listed above, it happens relatively infrequently. For example, the southern Atlantic Ocean (south of the equator) is rarely home to tropical cyclones.

With tropical cyclones in any basin possibly impacting multiple countries, how do forecasters keep tabs on all of them? The World Meteorology Organization created a branch called the Tropical Cyclone Programme (TCP) to ensure that all countries bordering and within each basin are adequately prepared for the threat posed by tropical cyclones. To accomplish this goal, the TCP's primary responsibility is to establish a nationally and regionally coordinated network of forecasting centers. To define areas of responsibility, they partitioned the tropical-cyclone basins and assigned Regional Specialized Meteorological Centers (RSMCs), which issue the official forecasts and advisories for their respective basins (see figure below).

Although each RSMC is responsible for issuing the official forecasts and advisories for their jurisdiction, there can be multiple cities which issue warnings for various countries under the umbrella of a single RSMC. For example, the official advisories and forecasts for the Atlantic Basin come from the National Hurricane Center in Miami, but the Canadian Hurricane Centre in Dartmouth, Nova Scotia, issues warnings when tropical cyclones threaten Canada, using the National Hurricane Center's products as their basis. Keep in mind that Atlantic hurricanes and tropical storms moving northward along the East Coast can pose a significant threat to the Canadian Maritimes (the provinces of Newfoundland and Labrador, Nova Scotia, New Brunswick, and Prince Edward Island).

Credit: World Meteorological Organization

In addition to the Regional Specialized Meteorological Centers and Tropical Cyclone Warning Centers on the map above, the Joint Typhoon Warning Center (JTWC) is an additional warning center and serves as a joint effort between the United States Navy and Air Force. JTWC was founded in 1959 in Guam, but has since moved to Pearl Harbor, Hawaii. While JTWC does not issue official public forecasts, they keep tabs on tropical cyclones globally for U.S. Department of Defense interests. I realize that the acronyms for all these forecast centers might seem a bit like alphabet soup, but if you're interested in exploring them more, the links in the Explore Further section toward the end of the page may be of interest.

Now that we know who's keeping track of tropical cyclones around the globe, we can delve into how they keep track of them. As you're about to see, standards vary around the globe. For starters, forecasters often have their eyes on clusters of showers and thunderstorms across the tropics (often called "tropical disturbances"). Tropical disturbances do not have closed circulations and are not formally tropical cyclones; however, by convention in the U.S., tropical disturbances that have the potential to develop into tropical cyclones are dubbed "invests." Each invest is tagged with a number from 90-99 along with a capital letter, which corresponds to the tropical basin where it's located (see the table below for the letters that correspond to each basin). Forecasters start with the number 90 and sequentially progress to 99, and then start over again at 90. So, for example, Invest 99L in the Atlantic Basin would be followed by Invest 90L, and so on.

If the tropical disturbance with organized convection develops a closed cyclonic circulation in its surface wind field, it becomes a tropical depression as long as its maximum sustained wind speeds (opens in a new window) are less than 34 knots (39 miles per hour). Note that different definitions of "sustained" (as described in the link) can lead to different storm classifications in different basins. Tropical depressions are formally considered tropical cyclones, and at this point The Joint Typhoon Warning Center, Central Pacific Hurricane Center, and the National Hurricane Center routinely assign a new number to go along with the letter referring to the basin of origin. For each season in each basin, the digits start at "01" and then increase by one for each successive depression that forms. Since the capital letter refers to the basin of origin, the letters are not changed if tropical cyclones cross 140 or 180 degrees longitude. I should note, however, that depressions in the Atlantic, Eastern Pacific, or Central Pacific Basins are an exception. When a depression is classified in any of these basins, the National Hurricane Center simply refers to it by its number ("One", "Two", etc.) and the letter gets dropped from the designation.

The National Hurricane Center also uses the simple numbering convention in instances when they designate an invest as a "Potential Tropical Cyclone," which indicates that the storm is not yet a tropical cyclone, but may bring tropical storm or hurricane conditions to land in the next 72 hours. For all practical purposes, NHC expects Potential Tropical Cyclones to become tropical cyclones, and since they're already close enough to land that they want to give an advanced heads up, they start following their tropical cyclone numbering conventions. So, if there's already been one tropical depression during the season, it would be referred to as "One." If the next invest ended up being dubbed a "Potential Tropical Cyclone," it would be "Potential Tropical Cyclone Two" following in line with the numbering convention they use for depressions (since they expect the storm to become a tropical cyclone).

Once a tropical cyclone reaches sustained wind speeds of at least 34 knots (39 miles per hour), it becomes a tropical storm and receives a name (more on the naming of tropical cyclones in a bit), though in the southern hemisphere, such a storm may be called "tropical cyclone" with a name attached. Tropical cyclones retain their tropical-storm status as long as their maximum sustained wind speeds remain between 34 knots and 63 knots. Once a tropical cyclone reaches maximum sustained wind speeds of at least 64 knots (74 miles per hour), it loses its "tropical storm" label, and earns one of the classifications in the table below, depending on the basin in which the storm is located. At times, I may generically refer to "hurricanes" in the text, but keep in mind that such references also include strong tropical cyclones that go by various labels in basins around the world.

Of course, all "strong" tropical cyclones (hurricanes, typhoons, etc.) are not created equal. Some are much more intense than others. In the Atlantic and Northeast Pacific basins, forecasters use the Saffir-Simpson Hurricane Wind Scale (opens in a new window) to further classify a given hurricane. Hurricanes classified as "Cat 3", "Cat 4", or "Cat 5" (all hurricanes with maximum sustained wind speeds of at least 96 knots, or 111 mph) qualify as major hurricanes. Although major hurricanes make-up only 21% of the hurricanes that hit the United States, these fierce storms account for over 83% of all the damage from landfalling hurricanes. For the record, Australian forecasters, rank tropical cyclones a bit differently (opens in a new window).

Other basins also have different descriptors for extremely intense tropical cyclones. In the Northwest Pacific Basin, for example, the particularly descriptive classification of "super typhoon" is used once a typhoon's maximum sustained wind speed reaches at least 130 knots (more than twice the minimum typhoon wind speed). For some interesting tidbits on a few memorable super typhoons, check out the Explore Further section below. In the North Indian Ocean, meanwhile, severe tropical cyclones that attain maximum sustained wind speeds of at least 130 knots graduate to super cyclonic storm. Before you finish up this section, try your hand at the Quiz Yourself tool toward the end of the page to make sure you've got the basics of classification conventions.

The Name Game

There's a checkerboard history behind the naming of tropical cyclones in the various basins around the world. If you're interested in the history of naming tropical cyclones, I encourage you to check out the corresponding section within Explore Further below. The reason why tropical cyclones get named, however, is pretty straightforward. The practice of naming tropical cyclones ensures clear, unambiguous communication between forecasters and the general public when forecasts, watches, and warnings are issued. At any given time across the globe (or even within a single tropical basin) there can be multiple tropical cyclones present at any one time. As an extreme example, the satellite image from September 14, 2020 (below) shows a whopping five named storms present in the Atlantic Basin!

Credit: NOAA

Without the practice of naming tropical storms, deciphering forecasts for multiple active storms in a basin could be a real mess -- sifting through coordinates or other technical descriptions of a storm's location. In the end, using names is much simpler for the general public, so let's get to the (not so simple) business of how storms are named. In the Atlantic and eastern Pacific, the World Meteorological Organization and National Weather Service (NWS) have used lists of alternating male and female names in alphabetical order to christen storms since 1979.

I should point out that any year that the alphabetical list of male and female names is not long enough to accommodate all the named storms in a season, the National Hurricane Center turns to a supplemental list of names; however, prior to 2021, the standard was to use letters of the Greek Alphabet (Alpha, Beta, Gamma, Delta, etc.) to name storms once the original list of names had been exhausted. Use of the Greek Alphabet to name storms only occurred twice (2005 and 2020).

For naming Central Pacific storms, the Central Pacific Hurricane Center uses its own list of words (not people's names) of Hawaiian origin. Because not many tropical cyclones form in the Central Pacific, they don't restart the list from the beginning each year, and instead they just keep using the same list until all the names have been used. When they reach the end of one list, they simply begin with the first name on the next list.

Meanwhile, in the northwest Pacific Basin, since the year 2000, the World Meteorological Organization has used names which are, for the most part, not male or female names. Instead, most names on the list refer to flowers, animals, birds, trees, or even foods, etc. Others are simply descriptive adjectives. Each name on the list is contributed by a participating nation within the basin. The names are not used in alphabetical order like in the Atlantic and eastern Pacific, however. Instead, the contributing nations are listed in alphabetical order and this ranking determines the order that the names are assigned.

It's important to note, however, that the established lists from the World Meteorological Organization are not universally used for storms in the northwest Pacific. The Philippine Atmospheric, Geophysical, and Astronomical Services Administration (PAGASA) assigns Filipino words as storm names when storms threaten the Philippines so that locals can easily remember them and communicate about the storm. For example, when Super Typhoon Haiyan (opens in a new window) made landfall in the Philippines as one of the strongest tropical cyclones on record at the time, Haiyan (which is from the Chinese for "petrel" -- a type of seabird) was known as "Yolanda" in the Philippines. So, be aware that you may come across two names for some storms in the northwest Pacific Basin.

Finally, in the North Indian Ocean, tropical cyclones weren't named from a traditional list until 2004. Prior to that year, conventions for identifying storms and keeping historical records were somewhat awkward (more in Explore Further). With regard to name selection, eight countries belonging to the WMO Tropical Cyclone panel for the North Indian basin contributed eight names each, which were tabulated into eight columns. In each column, one name from each country appeared, with the names listed in the order determined by the alphabetized contributing nations (the same convention as in the Northwest Pacific basin). You can see the lists of names for tropical cyclones in the North Indian Ocean and all other tropical basins (including basins not covered in-depth here) on the World Meteorological Organization's page of tropical cyclone names (opens in a new window), if you're interested.

An average of approximately 85 named tropical cyclones form each year worldwide -- a small number compared to the hundreds and hundreds of cyclones that parade across the middle and high latitudes each year. Yet, the attention that meteorologists focus on tropical cyclones sometimes seems disproportionately great. That's because strong tropical cyclones can cause staggering losses of life and property. Next up, we'll compare tropical cyclones with mid-latitude cyclones. Not surprisingly, there's a world of difference between them!

Read...

With the great potential for loss of life and property posed by tropical cyclones, they certainly garner great attention from weather forecasters and the public at large. But, why do powerful tropical cyclones more frequently steal national and international headlines, while mid-latitude cyclones rarely do? The first reason is likely that mid-latitude cyclones are more numerous. Hundreds of them trek across the globe each year. Meanwhile, only about 85 tropical cyclones develop each year.

Secondly, a tropical cyclone can attain a much greater intensity in terms of both sea-level pressure and wind speed (some even call hurricanes the "kings" of all low-pressure systems). For example, the most intense tropical cyclones can have sea-level pressures below 900 mb. Typhoon Tip (1979) had the all-time lowest at 870 mb, but other storms such as Hurricane Wilma (2005) and Hurricane Melissa (2025) have had central pressures below 900 mb. On the other hand, the sea-level pressure at the center of a mid-latitude cyclone rarely drops below 950 mb. For example, the famous Superstorm of 1993 (aka the "Storm of the Century") (opens in a new window), had a central pressure of 963 mb at its peak.

With these observations in mind, a natural question might be, "Why do strong tropical cyclones often attain sea-level pressures that are notably lower than those associated with mid-latitude cyclones?" While both types of cyclones are low-pressure systems, the answer to that question can found by examining the differences in structure and strengthening mechanisms characteristic of each type of low-pressure system. For starters, let's review the process of self-development that mid-latitude cyclones undergo in the short video below.

Self-Development of Mid-Latitude Cyclones (1:49)

The positive feedback loop described in the video continues uninterrupted until the late stages of occlusion, when the low moves back into the cold air (away from the baroclinic zone) and upper-level divergence over the low weakens (the low starts to "fill" -- surface pressure rises). But, in a nutshell, the whole process hinges on temperature gradients, the resulting temperature advections, and their connection to the magnitude of the divergence aloft. The divergence aloft (which is greater than the magnitude of the convergence at lower altitudes) drives the intensity of the mid-latitude cyclone. Also note, however, that the divergence aloft along with low-level convergence drives upward motion over the center of the low. You'll occasionally read or hear explanations that suggest that rising air causes lower surface pressures, but that's just not true. In fact, just the opposite is true. Rising air actually works against the overall reduction in surface pressure.

Recall that rising air cools via expansion, and once clouds and precipitation develop, can also yield evaporational cooling (assuming the atmosphere is not already at saturation). In turn, cooling by forced ascent increases the mean density in the column of air that extends from the ground to the tropopause (low-level convergence and upper-level divergence are still at work). Assuming a nearly hydrostatic atmosphere (opens in a new window), in which the force of gravity is balanced by the upward pressure gradient force, this increase in mean column density serves to add column weight. During the development stage of a mid-latitude cyclone, dominant weight-loss processes, such as net column divergence and warm advection near 200 mb overwhelmingly offset the tendency for air columns to gain weight from adiabatic and moist adiabatic cooling. But my point should now be clear: Rising air tends to make surface pressures higher, not lower. In other words, rising air actually works against the deepening of a mid-latitude cyclone; it serves as a "check and balance" on the overall intensity of the system.

Strong tropical cyclones, on the other hand, don't have this "check and balance" over their centers. Indeed, the predominant vertical motion over the center of a hurricane is downward. It's that downward motion that creates the eye of the storm, as shown in the visible satellite image of Hurricane Melissa from October 27, 2025 below. For the record, the eye is a roughly circular, fair-weather zone at the center of a hurricane. By "fair weather", I mean that little or no precipitation occurs in the eye and an observer looking upward in the eye can often see some blue sky or stars.

Credit: CSU/CIRA & NOAA

The diameter of the typical eye ranges from approximately 30 to 60 kilometers (about 16 to 32 nautical miles across), but eye diameters as small as four kilometers (approximately two nautical miles--see Hurricane Wilma's pinhole eye (opens in a new window) from 2005 as the storm deepened to 882 millibars) and as large as 320 kilometers (about 170 nautical miles) have been observed (see Typhoon Winnie's gigantic eye (opens in a new window) in 1997).

The "fair weather" in the eye can largely be attributed to the sinking air over the center of the storm. The downward motion in the eye is only on the order of a few centimeters per second, which suggests that the central core of strong tropical cyclones is approximately hydrostatic. Given that the compressional warming in the eye decreases the mean density of the central column of air in the eye (and thus its weight), we can deduce that subsidence contributes to the low central pressures observed in hurricanes. Of course, as the sinking air warms, relative humidity decreases within the sinking parcels, which promotes the clearing observed within the eye.

I should point out however, that the air does not uniformly sink within the eye of a hurricane. Observations taken from the eye of a hurricane often reveal an inversion at an altitude of about one to three kilometers like the one shown on this temperature and dew-point soundings (opens in a new window) retrieved from measurements taken in the eye of a hurricane. The subsidence inversion (opens in a new window) near 850 mb is the telltale sign of downward motion in the eye of a hurricane, but the presence of this inversion means that air does not sink all the way to the ocean surface. The fact that air does not sink all the way to the surface explains why low clouds frequently exist in the eyes of hurricanes (although skies may not be completely overcast).

Regardless of the fact that air does not uniformly sink throughout the entire eye, the compressional warming associated with the subsidence in the eye is one contributor to the "warm core" of a hurricane (by "warm core" I mean that the air columns at the center of the low are warmer than those at the periphery). Meanwhile, deep, moist convection outside of the eye (in the eyewall--the partial or complete ring of powerful thunderstorms around the eye, and spiral bands--relatively long and thin bands of convective rains) also contributes to the warm core.

Credit: National Weather Service

The image above gives you an overall view of the basic structure of a hurricane on radar. Note the spiral bands (yellow, orange, and red shadings) curving in toward the center of the storm, and the innermost spiral band wrapped around most of the eye (the roughly circular area marked by lower reflectivity in greens and blues) to form the eyewall on the northern and western sides. How does the deep, moist convection in the eyewall and spiral bands contribute to the warm core of the storm? Simply put, the air parcels rising in thunderstorm updrafts are initially very warm and moist (due to evaporation from warm tropical seas). As these parcels rise in thunderstorm updrafts, huge amounts of latent heat of condensation are released. Yes, air parcels cool as they rise, but the release of latent heat keeps them warmer than they otherwise would be, which keeps the air within a hurricane warmer than air at the same altitudes outside of the influence of the hurricane. Weaker tropical cyclones are also warm core systems because of the release of abundant latent heat (even though weaker systems don't have eyes--there's no organized compressional warming in the center of the storm).

All in all, within a strong tropical cyclone, the warm core generated by latent heat release and compressional warming can be quite substantial. For example, check out the cross-section of satellite-detected temperature anomalies from Super Typhoon Haiyan at 1726Z on November 7, 2013 (below).

The core of the warm anomaly approximately coincides with the eye of Haiyan, and at its peak in the middle and upper troposphere, temperatures were as much as 7 degrees Celsius greater than the environment surrounding the storm. Outside of the eye, the warm anomaly is weaker, but still spans hundreds of miles across the storm. Given the maximized warm core near the center of the storm, it becomes clear that hurricanes create large horizontal temperature gradients internally (especially at the interface of the eye and eyewall) during their development, even though they initially form in the weak horizontal temperature gradients that characterize the tropics. As you've learned, mid-latitude cyclones are just the opposite: They form in areas with large horizontal temperature gradients, and their circulations ultimately act to reduce horizontal temperature gradients over time.

Sustaining Tropical Cyclones

Now that we've established a key difference between tropical cyclones (which have a warm core) and mid-latitude cyclones (which do not, since they are characterized by rising motion over their centers and typically lack deep, moist convection near their cores), let's turn our attention to another key factor in the intensification of both mid-latitude and tropical cyclones--divergence aloft. You're already familiar with the role of divergence aloft in mid-latitude cyclones, supplied primarily by 500-mb shortwave troughs and 300-mb jet streaks, but divergence aloft plays an important role in tropical cyclones, too.

In order to help you visualize divergence aloft in tropical cyclones, allow me to introduce the secondary circulation of a tropical cyclone. As the name implies, tropical cyclones have two distinct circulations. The primary circulation, as you might expect, refers to rotation of air around the center of the storm. But, there's another circulation going on at the same time. In a basic sense, low-level air flows in toward the center of the storm, rises in thunderstorms within the eyewall and spiral bands, and flows (mostly) outward aloft, sinking around the periphery of the storm. This general circulation (in at the bottom of the storm, up, out at the top, and down around the storm's periphery) is the secondary circulation. To visualize this "in, up, and, out" process in the context of a strengthening hurricane, check out the short video below.

Hurricane Intensification (1:28)

As the video shows, divergence aloft helps to reduce surface pressure over the center of a hurricane by removing mass from air columns near the center of the storm (and the divergence tends to increase as thunderstorms intensify). Meanwhile compressional warming over the center (which also tends to increase as thunderstorms intensify) also acts to reduce surface pressure. Ultimately, hurricanes intensify as a result of a positive feedback loop, albeit a completely different one than the self development process for mid-latitude cyclones. The key to maintaining the whole process of hurricane intensification is sustaining organized deep convection around the core of the storm. One of the salient features in the positive feedback loop for hurricanes is "scale interaction." In a nutshell, processes on the spatial scale of convection (thunderstorms, for example) work to amplify changes on a larger spatial scale (such as lowering surface air pressure in the eye of a hurricane). In turn, amplification on the larger spatial scale amplifies convection (thunderstorms), and the feedback loop is off to the races. We'll delve much deeper into the details later in the course, but for now you should have a basic idea of how hurricanes intensify.

As you now know, tropical cyclones operate quite a bit differently from mid-latitude cyclone, so make sure that you understand the main contrasts between the two types of storms. To help you keep track of the major differences, below is a quick summary, highlighting the key differences between mid-latitude and tropical cyclones.

By now, I hope you're beginning to appreciate the differences between the mid-latitudes and the tropics. But, we're not done quite yet. Even the tools that tropical forecasters use are different! We'll start with map projections next. You'll quickly see that the map projections commonly used in the mid-latitudes don't work so well in the tropics!

Read...

The fact that Earth is a sphere presents some hurdles for map-makers (and weather forecasters). Trying to accurately depict our spherical Earth on flat maps brings some real challenges, and the resulting process is always imperfect. Because of these imperfections, many types of map projections exist. Depending on the type of map projection, it is possible to minimize (or, in some cases, eliminate altogether) distortions in shapes, areas, distances and directions (the "Big Four" that map-makers worry about). But, no single map projection accurately preserves them all. Indeed, minimizing or eliminating distortions in one or two of the "Big Four" often results in gross distortions in the others.

Because a number of different projections exist, weather forecasters must always be aware of the benefits and limitations of viewing data displayed on various map projections. From your previous studies, you should be familiar with the polar stereographic projection, which is commonly centered on the North Pole. The benefit of such polar stereographic projections is that it allows forecasters to track the movement of weather systems in the middle and high latitudes over long distances. It is, however, important for forecasters to get their bearings when looking at polar stereographic projections because compass directions are not preserved. For example, in the polar stereographic map below, the arrow off the Pacific Coast of the United States represents a wind blowing from due west (270 degrees). An arrow representing a due west wind off the East Coast of the U.S. would be oriented quite differently, though, because it still would need to parallel the nearest latitude circle.

Polar stereographic map projections are commonly used by forecasters when tracking weather features in the middle and high latitudes, but not in the tropics. Why are polar stereographic projections not favored by tropical forecasters? For a clue, check out Texas and Alaska on the map above. They look to be nearly the same size, but in reality, Alaska is more than twice the size of Texas. Indeed, polar stereographic projections like this one suffer from gross size distortions farther away from the North Pole, and that's a problem when analyzing tropical weather patterns.

Tropical forecasters, therefore, turn to Mercator projections like the one below to track tropical weather systems. Distance distortions in the tropics are very limited on Mercator maps; however, they have major distance distortion problems at higher latitudes, as the image below indicates. As a result, Alaska completely dwarfs Texas (far more than in reality). At even higher latitudes, Greenland looks to be almost the size of Africa, but in reality, Africa is more than 13 times larger than Greenland. At the extreme, the North and South Poles (single points, in reality) appear as straight lines at the top and bottom of Mercator maps. Now that's distortion!

The limited distortion in the low latitudes is one reason why the Mercator projection is the map of choice for tropical forecasters. Another reason for its favored-map status is the relative ease in plotting and interpreting the tracks of tropical cyclones. That's because any line drawn between two points on a Mercator map preserves compass direction. For this reason, tracking tropical storms and hurricanes on Mercator maps is standard practice at the National Hurricane Center. For example, check out this five-day forecast for Hurricane Erin (opens in a new window), issued at 11 AM EDT on August 15, 2025. The fact that Erin was moving toward the west-northwest, and was predicted to take a turn toward the north in the next five days is easy to discern because of the use of a Mercator map. The cost of preserving compass directions, however, is the large distortions at higher latitudes.

To understand why distances are accurately represented in the tropics (and not at higher latitudes), you need to have a general understanding of the technique for creating Mercator projections. The common Mercator map is a cylindrical projection (opens in a new window) that accurately represents east-west distances along the equator (in other words, the distance scale is true). Nonetheless, distances are reasonably accurate within 15-20 degrees of the equator, making the Mercator projection ideal for the tropics. I should point out that Mercator projections can be constructed so that east-west distances are accurate along two standard latitudes equidistant from the equator.

Because horizontal distances in the tropics are depicted with reasonable accuracy, it is possible to look at satellite loops or a series of static satellite images of hurricanes and do a quick rough calculation of the storm's westward speed across the Atlantic. The key to these calculations is realizing that at the equator, Earth's circumference is 24,901 statute miles, and we have 360 degrees longitude in total. Simple division tells us that one degree longitude at the equator is equivalent to 69 statute miles (or 60 nautical miles). As we move away from the equator, this distance changes, but in the tropics, it serves as a good approximation (especially within 15-20 degrees latitude of the Equator). If you're wondering, one degree latitude is always equivalent to these values.

Based on this calculation, we can apply an old-fashioned, but simple and effective method to estimate a tropical cyclone's westward speed. You can literally put one finger on the center of the hurricane in the first image of a satellite loop or series of static images and then your thumb on the storm's center in the last image. Then, simply estimate the number of longitude degrees between your finger and thumb, multiply by 69 statute miles (or 60 nautical miles), and divide by the time (in hours) in order to calculate the forward speed in statute miles per hour (which most folks would just call "miles per hour.") or nautical miles per hour (which most folks would just call "knots"). For example, check out the image slider below. The first image shows infrared satellite imagery on a Mercator projection with Hurricane Erin located at about 19 degrees North, 59 degrees West. If you toggle the slider, you'll see the infrared satellite image from 24 hours later, with Erin now located around 19 degrees North, 65 degrees West.

During this time, Erin moved roughly westward near 19 degrees North latitude, and moved a total of about 6 degrees longitude. If we wanted the forward speed in knots (nautical miles per hour), multiplying 6 degrees by 60 nautical miles per degree gives a total of 360 nautical miles in a 24-hour time period, for an average speed of about 15 knots (17 miles per hour). Of course, we now have sophisticated computer models that predict positions and movement of tropical cyclones, but for short-term forecasts (say, less than 12 hours), extrapolating the storm's current motion can sometimes be quite useful (possibly even yielding superior results to computer model guidance).

Extrapolating current tropical cyclone movement can be helpful when the storm's environment doesn't change much, but tropical cyclones often change directions as their steering environments change. Furthermore, tropical cyclones don't always move from east to west, nor do they always stay in the tropics! Many tropical cyclones eventually curve toward the poles. As they do so, Mercator maps become less useful because of the increasingly large distortions at higher latitudes. For example, check out this five-day forecast for Hurricane Erin later in its life (opens in a new window) from the National Hurricane Center plotted on a Mercator projection. At the latitudes where Erin was predicted to travel, it's pretty difficult to get a feel for the storm's predicted forward speed because the distances on the map are so highly distorted. Note that the latitude/longitude "boxes" toward the top of the map are much, much larger than those at the bottom.

So, what do forecasters do as storms enter the middle latitudes? They turn to the Lambert conformal projection, which is a conical map projection that preserves distances along two standard latitudes (typically 30 and 60 degrees north -- note that the standard latitudes lie on the same side of the equator). Moreover, distortion is minimized in a narrow band along the two standard latitudes, but it increases with distance from these standard parallels. As its name suggests, the map projection is conformal, meaning that it preserves the proper angles between intersecting lines and curves and thus tends to preserve the shapes of relatively small areas better than other kinds of projections. Even though Lambert conformal projections preserve the shapes of small areas, it distorts their sizes, particularly those areas that lie relatively far from the standard latitudes.

In most of the mid-latitudes, however, distortion is relatively low on Lambert conformal projections (it's not nearly as significant as it is in the deep tropics). For this reason, meteorologists frequently take advantage of the shape-preserving nature of the Lambert conformal projection as tropical cyclones move out of the tropics into the mid-latitudes. Preserving the shapes of tropical cyclones as they travel to higher latitudes (on satellite images, for example) is important to forecasters because they continually look for physical changes in these weather systems to help them get a better handle on their current and future states.

Before we move on, I encourage you to check your knowledge of some basics from this page in the Quiz Yourself section below. Up next, I want to now talk briefly about the computer models used in tropical forecasting. If you pay close attention, you'll note the frequent use of Mercator maps to display model data in the tropics. Keep reading!

Read...

Although we covered an "old-school" approach for short-term tropical cyclone track forecasts on the previous page, we have many sophisticated tools for predicting the track and intensity of tropical cyclones. Indeed, the advent of computer model guidance revolutionized weather forecasting, and tropical forecasting is no exception. Thanks to developments in computer guidance, reasonably accurate forecasts for tracks of tropical cyclones are now the norm several days in advance.

You're already familiar with how computer models work and what some of their main flaws are from your previous studies, and you should be familiar with some commonly used computer models and forecast variables used for forecasting in the middle latitudes. That basic knowledge is still applicable to the tropics, but tropical forecasters have some other computer guidance tools to work with, too. I'll break the discussion down into three parts -- global models, specialized tropical cyclone models, and ensembles.

Global Models

Since tropical cyclones are a global phenomena, forecasters often turn to the "global models" (that is, models that have a domain covering the entire globe that you should already be familiar with from your previous studies) to keep tabs on tropical cyclones in any basin. This includes both the "traditional" numerical weather prediction models run by the major modeling centers around the world (such as the GFS in the United States, ECMWF Integrated Forecast System (IFS) from Europe, CMC GDPS from Canada, the UKMET "Unified Model" from the United Kingdom, and the JMA Global Spectrum Model (GSM) from Japan, among others), as well as artificial intelligence-based models that these centers have developed, such as the AI-GFS or the EC-AIFS (which stands for the European Centre Artificial Intelligence/Integrated Forecast System).

As a quick reminder, traditional numerical weather prediction models and artificial intelligence (AI) models produce their predictions in different ways. Traditional numerical weather prediction models start with a representation of the current state of the atmosphere and then solve numerous mathematical equations that describe the dynamics and thermodynamics of atmospheric behavior to predict future states of the atmosphere. AI models are trained on decades of past weather reanalysis data, and using what they learn about how atmospheric patterns evolve from their training dataset, they can predict future states of the atmosphere after starting with a representation of its current state (often without incorporating physics at all). As you may recall from your previous studies, both modeling approaches have their strengths and limitations.

For an example of what a tropical cyclone looks like in the broad domain of a global model, check out the GFS forecast below. The "footprints" of four tropical cyclones (circled) are apparent as regions of relatively low sea-level pressure. As we've already discussed in this lesson, we can quickly get the idea that tropical cyclones are relatively small features in the scheme of things (certainly compared to the larger mid-latitude cyclones located at higher latitudes). Just a few decades ago, global models had resolutions that were so coarse that they weren't of much use in providing detailed looks at the core and wind field of a tropical cyclone, but resolution has increased so that global models can provide these details to some degree. Still, other models have been developed specifically to provide more detailed guidance for existing tropical cyclones.

Specialized Tropical Cyclone Models

Because global models aren't always the best at simulating the finer details of tropical cyclones, forecasters also turn to models specifically designed to forecast tropical cyclones. These models generally do not have a global domain, and only cover specific tropical basins. NOAA's flagship model developed specifically for tropical-cyclone forecasting is the Hurricane Analysis and Forecast System (HAFS), which became operational in 2023. Some benefits of the HAFS include the fact that it is "ocean coupled," which means that changes in the ocean and atmosphere respond to each other in the model, which is not the case in some global models. Ocean coupling in a model can be a big advantage because as you'll learn later, strong hurricanes can dramatically alter the characteristics of the ocean beneath them, which can then in turn alter the intensity of the storm.

The HAFS is also run at a relatively high resolution, with "nests" that follow individual storms along in time. Its high resolution means that it is capable of predicting small-scale structures within a storm. Of course, there's no guarantee that these small-scale details will be accurate for any given storm, but the ability to realistically simulate deep convective cells can be very helpful in simulating processes in the cores of tropical cyclones, which can improve intensity prediction, on average. As an example of the detail provided by these forecasts, check out the 6-hour forecast (below) of composite radar reflectivity and mean sea-level pressure for Super Typhoon Doksuri (2023), as it approached northern Luzon in the Philippines (opens in a new window).


The core of Doksuri was depicted with great detail as it approached northern Luzon, and the HAFS predicted a central pressure of 917 mb. But, as I just mentioned, while the HAFS can make highly-detailed predictions, there's no guarantee that they'll be accurate (the lowest estimated central pressure during Doksuri's life was 926 mb, so this was a pretty substantial error for a six-hour forecast).

The HAFS is actually run in two configurations -- HAFS-A and HAFS-B (note that the forecast prog above is from the HAFS-A). While the HAFS is not a global model, the HAFS-A configuration is run in all tropical basins. The HAFS-B configuration is only run on tropical basins under the responsibility of the National Hurricane Center and the Central Pacific Hurricane Center. The HAFS-A and HAFS-B also have some differences in their ocean coupling schemes and how they simulate some small-scale physical processes. Furthermore, tropical cyclones in the HAFS-B domain that have Doppler radar and other data collected during aircraft reconnaisance flights (opens in a new window) have some extra initialization data compared to storms in other basins.

Lest you think that NOAA didn't run tropical-cyclone specific models until the HAFS debuted in 2023, there's actually a history of such models going back to the 1970s with the Moveable Fine Mesh (MFM) Model. More recent generations of tropical-cyclone specific models also consisted of the HMON (Hurricanes in a Multi-scale Ocean-coupled Non-hydrostatic model), which became operational in 2017, and the HWRF (Hurricane Weather Research and Forecasting) model, which became operational in 2007. The HWRF in particular was ground breaking because it was first operational model to be able to assimilate Doppler radar data collected during aircraft reconnaissance flights in its initialization. The HMON and the HWRF are still being run, but are planned to be phased out.

Traditional numerical weather prediction models like the HAFS aren't the only specialized approach to tropical cyclone modeling, however. Specialized AI models focused on tropical cyclone forecasting also exist. These models are trained specifically on past tropical cyclone cases to produce forecasts for tropical cyclones (track, intensity, size, structure, etc.). But, these specialized models don't produce forecasts for the entire atmosphere as global AI models do. Some private sector companies like Google have been major developers of AI-based tropical cyclone models, which play a big role in our next modeling topic -- ensembles.

Ensembles

As you know, both traditional numerical weather prediction models and AI models are fallible, and often, various models have differing solutions. Indeed, check out the average cyclone forecast track errors (opens in a new window) of various computer models. Given that no models are perfect, and their solutions are often different, do forecasters have any tools at their disposal for helping them navigate the sea of uncertainty? Ensemble forecasts, to the rescue! Ensemble forecasting embraces the tendency toward differing forecast solutions by allowing forecasters to see a range of possible forecast outcomes, which allows forecasters to gauge uncertainty.

You've already been exposed to the basics of ensemble forecasting, but allow me to quickly review. Recall from your previous studies that the data used to initialize a computer model is always imperfect (we're nowhere close to being able to perfectly measure variables in the atmosphere everywhere at all times). So, the model initialization always contains errors. Ensemble forecasts are created by slightly altering the initial conditions fed into the model and / or altering the model physics (recall that a model's ability to mimic the atmosphere is not quite perfect). Each slight altering of the initial conditions or model physics generates an ensemble member. When there's very little spread in the solutions from all ensemble members, then the forecast isn't particularly sensitive to small errors in initialization or differences in model physics, and confidence in the operational model solution is high. But, when lots of spread exists among the individual member solutions, then the forecast is very sensitive to those differences, and confidence is lower.

Ensembles comprised of traditional numerical weather prediction models require a lot of computing power to run, and individual ensemble members are often run at reduced spatial resolution to conserve computing resources. But, ensembles for AI models exist, too, and while AI models require an immense amount of training data to develop, actually running the models on a daily basis is far less resource intensive than traditional numerical weather prediction models. So, AI ensembles can have many more members and can run much faster than ensembles from traditional numerical weather prediction models. To see an example of each in action, check out the image slider below, which shows track forecasts from the ECMWF ensemble for Super Typhoon Sinlaku (2026). The thick black line represents the actual storm track, while the multi-colored lines represent the ensemble member forecasts from the 00Z run on April 9.

It's clear that the ECMWF had a huge spread in track forecasts for Sinlaku, but if you toggle the image slider to see the corresponding ensemble run from Google DeepMind's AI model, it had a much tighter clustering of track solutions in this case, which could have helped forecasters narrow the scope of likely possibilities. Both sets of ensembles, however, carried the striking message that confidence steadily lowered with increasing forecast time as the spread in forecast tracks grew (it's simply the nature of the beast that errors associated with computer guidance grow with increasing time).

Ensembles can also give forecasters an idea of the range of possibilities for tropical cyclone intensity forecasts. For Sinlaku, this comparison of the ECMWF and Google DeepMind ensembles (opens in a new window) shows a wide range of possibilities. The black lines represent the storm's actual intensity, and we can quickly take away a few key messages. First, the vast majority of ensemble members underestimated Sinlaku's peak intensity (the black line peaks at the high end of the wind speed forecasts and "bottoms out" on the low end of the sea-level pressure forecasts). However, members of the Google DeepMind ensemble did a good job with timing its rapid intensification to a Category 5 storm. On the other hand, the ECMWF ensemble had a few members that better depicted Sinlaku's maximum intensity (below 900 mb), though they intensified the storm too slowly. Ultimately, forecasters utilize both "physics-based" and AI-based ensembles for key messages about forecast uncertainty. That's very helpful information, and it's much better to take into account the range of possibilities as opposed to locking in on a couple of operational model runs.

Other approaches to ensemble forecasting also exist (combining multiple ensembles into "super ensembles" or simply comparing many completely different models as an ensemble, for example). With many modeling options available (and I only covered the major ones on this page), it's important to remember from your previous studies that forecasters look for consensus among the models and diligently comb over real-time observations that might offer clues about which models have a better handle on a particular weather system. The same approach rings true for predicting tropical cyclones. If you're curious about where you can access model guidance from the global models and other models specifically created for predicting tropical cyclones, check out the list of resources in the Explore Further section below (the section also covers other models that I didn't touch on).

Yes, there's a wide variety of model guidance available to tropical forecasters. But, because tropical cyclones operate differently than mid-latitude cyclones, some unique forecast variables are of interest to tropical forecasters. We'll take a look at these variables next.

Read...

Since we know that tropical cyclones behave differently than mid-latitude cyclones, it stands to reason that forecasters tasked with predicting tropical cyclones look at some different computer model products than the ones we've focused on in your previous studies. Therefore, I want to give you an idea of the major forecast variables and model products that tropical forecasters look at when predicting tropical cyclones. There's a lot of nuance and detail involved with these variables that we'll get into later in the course, but my hope is that this initial exposure will reinforce what makes tropical cyclones "tick" (i.e. factors that favor organized deep convection around the core of the storm) and allow you to start using model products effectively when tracking tropical cyclones.

At the most basic level, forecasters are interested in knowing whether a tropical cyclone will form (if one is potentially just getting started), what its future track will be, and how its intensity will change in time. So, what do forecasters look at in model guidance to get a handle on these issues? The list below is not exhaustive, but it covers the major variables that forecasters keep tabs on. Click on each one to expand the item and see a short explanation (with important forecasting thresholds, where appropriate).

Low-level vorticity and height/pressure patterns

Tropical cyclones require low-level cyclonic vorticity to develop (and stronger tropical cyclones display stronger low-level vorticity maxima with their circulations). Therefore, forecasters often look to 925-mb or 850-mb vorticity to help them diagnose tropical cyclone development.The pattern of mean sea-level pressure or heights at 925 mb or 850 mb can also help forecasters identify troughs and developing areas of low pressure.

500-mb heights/winds

Steering forces for tropical cyclones are somewhat complex as we'll learn later, but the pattern of 500 mb heights and winds provides a proxy for the large-scale steering forces for strong tropical cyclones.

Vertical wind shear through a deep layer of the troposphere

Vertical wind shear is the change in wind speed and/or wind direction with increasing altitude. Why do tropical forecasters care about vertical wind shear? In a nutshell, when vertical wind shear is too strong, tropical cyclones can't maintain organized thunderstorms around their cores. Thus, vertical wind shear between 850 mb and 250 mb (or a similar layer) must be relatively weak for tropical cyclones to form and develop. Basically, tropical forecasters look for wind shear values to be less than 10 meters per second (about 20 knots) as an indication of favorable conditions for genesis and development of tropical cyclones.

Middle tropospheric relative humidity

Relatively moist air in the middle troposphere is favorable for the genesis and development of tropical cyclones, while very low relative humidity values in the middle troposphere are unfavorable. While there are no firm thresholds, values of 70% or higher would be considered highly favorable. Values around 30% or lower would be highly unfavorable for a tropical cyclone (because they hinder sustained, organized deep convection).

Sea-surface temperatures (SSTs)

In general, higher SSTs tend to promote evaporation into the boundary layer. A warm, moist boundary layer is more favorable for deep convection. SSTs greater than 26 degrees Celsius tend to favor development.

These variables give you a good idea of the types of model products that forecasters tasked with predicting tropical cyclones tend to focus on. To see how a forecaster would evaluate these variables when forecasting a real tropical cyclone, check out the video below.

Model Guidance for Tropical Cyclone Forecasting (7:25)

One big take away from the video is that a tropical cyclone's circulation can affect the interpretation of its steering environment, vertical wind shear, and its local relative humidity environment on computer model progs, so make sure to take note of those discussions in the video. Recognizing how a storm's circulation affects those interpretations is really important for making sound judgments about various aspects of the forecast.

Finally, much like with all the model guidance you've studied previously, plotting conventions (contour intervals, units, color schemes, specific layers for calculating wind shear or mean relative humidity, etc.), can all vary from website to website, so it's always critical that you take the time to get your bearings and recognize what's actually being shown on a given prog. For example, if a prog on one site shows vertical wind shear expressed in meters per second, and another shows it expressed in knots, you can easily make a mistake in assessing the strength of the shear around a tropical cyclone if you're not paying attention to the units!

Now that we've covered some basic tools that forecasters use to predict tropical cyclones, let's wrap up the lesson by looking at forecast products developed by the professionals at the National Hurricane Center. Read on.

Read...

With a wide array of model data available online, it's easy for newer forecasters to get lost in a sea of forecast data. Not to worry, though! Professional tropical forecasters around the globe are constantly watching over the tropics, and issuing forecast products when tropical cyclones form. These products from RSMCs like the National Hurricane Center (NHC) in Miami, Florida, are a great help as you track current tropical cyclones. In addition, they also allow you to virtually shadow professional forecasters to get a sense for how they're thinking about a particular forecast. Indeed, professional forecasters can be an invaluable knowledge resource, even if you don't have "personal connections" to any of them.

In general, tropical forecasters have access to numerous types of observations (some of which you'll learn about later), as well as the same suite of models we've covered. That's a lot of information to manage! The solution? The Automated Tropical Cyclone Forecasting (ATCF) system -- a piece of software that was developed to streamline the forecasting of tropical cyclones at operational forecasting centers run by the U.S. Department of Defense (like JTWC) and the National Weather Service (like NHC). All of the data are organized in files called "decks" which become the data sources for many graphics used by professional forecasters (many of which are available online). If you're interested in reading more about the various "decks", the Tropical Cyclone Guidance Project provides a brief discussion of these ATCF files in their description of real-time guidance (opens in a new window).

Credit: National Weather Service

Professional forecasters at NHC process and analyze the available data to develop forecast products in line with their mission statement, which is to "save lives, mitigate property loss, and improve economic efficiency by issuing the best watches, warnings, forecasts, and analyses of hazardous tropical weather, and by increasing understanding of these hazards." From its headquarters on the campus of Florida International University, NHC has responsibilities covering 24 countries in the Americas and the Caribbean Islands, as well as maritime interests in the North Atlantic Ocean, Gulf of Mexico, Caribbean Sea, and Eastern Pacific (north of the Equator).

Even when no active tropical cyclones are present within their jurisdiction during hurricane season (June 1 - November 30 for the Atlantic Basin, May 15 - November 30 for the Eastern Pacific), forecasters at NHC are still watching for areas of potential development, which you can follow with their daily tropical weather discussions (Atlantic Discussion (opens in a new window); Eastern Pacific Discussion (opens in a new window)). However, when a tropical cyclone forms within their jurisdiction, that's when NHC's Web page (opens in a new window) becomes more active with an abundance of compelling information and images. I won't cover all of NHC's tropical cyclone forecasting products in this section, but I do want to briefly cover the major products so that you know what's available and you can seek professional guidance when tropical cyclones are active in the Atlantic or Eastern Pacific. For the sake of simplicity, I'll separate NHC's products into text products and graphical products. For the record, the same set of products is also available from the Central Pacific Hurricane Center (CPHC) in Honolulu when storms enter their domain.

NHC Text Forecast Products

For a comprehensive overview of all of NHC's text products, you can check out NHC's text products description page (opens in a new window). For brevity's sake, I'm only going to highlight and summarize three of the most commonly encountered text products. Click on each one to see a short description of the product and a link to an example.

Public Advisories

Public advisories are issued by NHC every six hours (03Z, 09Z, 15Z, 21Z) once a tropical cyclone forms, and are meant to do just what their name implies - advise the public of a tropical cyclone's current status and potential impacts. Check out this sample public advisory for Hurricane Helene (opens in a new window) issued at 11 PM EDT on September 26, 2024. Note that the critical current facts about the storm (location, maximum sustained wind speeds, central pressure, and current movement) are listed near the top of the advisory. Following the current status of the storm are sections discussing watches and warnings, a brief outlook, and impacts. When a tropical cyclone threatens land, NHC quickens the pace, issuing public advisories more frequently (sometimes updates even come multiple times an hour near landfall).

Forecast Advisories

Forecast advisories are a bit more technical than public advisories (see the corresponding forecast advisory for Hurricane Helene (opens in a new window) as an example). They're issued by NHC on the same schedule as public advisories, and include much of the same critical information as the public advisories. In addition, forecast advisories also include an estimate for the diameter of the eye in nautical miles, and maximum distances that tropical-storm-force winds (34 knots), storm-force winds (50 knots), and hurricane-force winds (64 knots) extend from the storm's center ("wind radii"). For maritime interests, forecast advisories routinely include distances that waves at least 12-feet high extend from the storm's center ("12-ft seas"). If you need help deciphering a forecast advisory, NHC provides a handy online guide (opens in a new window) that you can reference (it's very helpful for decoding the forecast information). An added feature of the forecasts beyond 72 hours is that they offer a statement about previous errors in forecasting the storm's track and intensity.

Forecast Discussions

Forecast discussions are also issued on the same six-hour schedule as public advisories, and allow you to eavesdrop on how NHC forecasters are thinking about a storm behind the scenes. Given the valuable experience of NHC forecasters, reading forecast discussions can be a tremendous way to learn about forecasting tropical cyclones. Regularly, forecast discussions contain comments on interesting storm features, forecasters' concerns about their current estimate of storm position or strength, model uncertainty and performance, explanations of the decisions forecasters have made, and more. Sometimes, forecasters even liken what they see in certain storms to past storms (an example of "analog forecasting"). The discussion also includes a summary of key forecast messages critical for public safety. The corresponding forecast discussion for Hurricane Helene (opens in a new window), for example, shows that forecasters highlighted the risk for "catastrophic and life-threatening flash and urban flooding, including numerous significant landslides" across portions of the southern Appalachians (toward the bottom of the discussion).

NHC Graphical Forecast Products

In addition to text forecast products, NHC also issues a number of graphical forecast products, some of which you may already be familiar with because they're so commonly seen on television weathercasts or online. First is NHC's forecast cone of uncertainty. The track forecasts produced by NHC (or any other forecasting outlet, for that matter) aren't perfect (check out the average errors (opens in a new window) for NHC 24, 48, 72, 96, and 120-hour track forecasts), so only providing a single solution would inevitably be fraught with error. While NHC's track forecasts continue to steadily improve, even three-day forecasts average almost 100 nautical miles of error. Thus, forecast cones of uncertainty, such as the one for Hurricane Milton at 5 AM EDT on October 8, 2024 (below), help reflect that the path of the center of the storm is uncertain.

Credit: National Hurricane Center

The position of Milton's center at the time the graphic was issued is marked by the black "X." The series of black dots indicate the successive predicted positions of Milton's center (they're just a plot of the coordinates from the forecast advisory). The letters within each dot indicate Milton's predicted intensity at each forecast time ("H" = Hurricane; "M" = Major Hurricane, "S" = tropical storm). Note how the cone of uncertainty widens with time, reflecting the growing uncertainty as forecast lead time increases.

The width of the cone is based on NHC's historical forecast errors for the previous five years, so the actual width of the cone changes a bit every year, but stays fixed from storm to storm within any given year. NHC data suggest that the five-day path of a tropical cyclone's center will remain entirely within the five-day forecast cone approximately 60-70% of the time. It should be noted, however, that hurricanes are not "points". They are storms with horizontal breadth. As a result, tropical-storm and hurricane conditions may occur outside the cone, even if the center of the storm remains within the forecast cone of uncertainty. To help make that point, NHC includes a depiction of the current wind extent around the center of the storm (brown and orange shading show the extent of hurricane and tropical-storm force winds, respectively). When tropical cyclones approach land, they also include the tropical storm and hurricane watches and warnings that are in effect.

Tropical cyclone intensity forecasts can also be quite uncertain, as suggested by this plot the average error (opens in a new window) for NHC 24, 48, 72, 96, and 120-hour forecasts. Improvements in intensity forecasting have generally been more modest (suggesting that much work remains to be done toward improving intensity forecasts), and have been most notable for four and five day forecasts. Given the challenges associated with intensity forecasting, NHC produces some probabilistic forecast graphics for tropical cyclone intensity. In an effort to produce products that are simple to comprehend and focus on potential impacts, NHC created graphics showing probabilities of wind speeds reaching or exceeding 34 knots (tropical-storm force), 50 knots (storm force), and 64 knots (hurricane force) within a five day period. The image below represents the probabilities that sustained wind speeds would exceed 34 knots (tropical storm-force) from 2 AM (EDT) on October 8 to 2 AM (EDT) on October 13, 2024.

Credit: National Hurricane Center

Note that sustained tropical-storm force winds were nearly certain across parts of central Florida during this period. Given that Milton was still a couple of days away from landfall in Florida, however, tropical-storm force winds weren't a sure thing farther north or south. The probabilities of hurricane force winds in Florida would have been lower during this time period because of the uncertainties in the storm's future intensity and track, as well as the fact that hurricane-force winds occur over a much smaller area of the storm. If you'd like to see where tropical storm and hurricane-force winds actually ended up occurring from Milton, check out the "Wind History" product in the Explore Further section below.

Of course, timing the arrival of windy conditions with a landfalling tropical cyclone is important, too. For all practical purposes, most preparations need to be completed before tropical-storm force winds arrive in a given location, so NHC also issues products showing the most likely arrival time, as well as the "earliest reasonable" arrival time of tropical-storm force winds ("earliest reasonable" is defined as the time at which there's only a 1 in 10 chance that they'll arrive earlier). If you compare these forecasts for Hurricane Milton on the morning of Tuesday, October 8 in the image slider below, NHC predicted that tropical-storm force winds were most likely to arrive in Florida on Wednesday afternoon, but they could arrive as early as just after 8 AM Wednesday (well before the predicted landfall time of around 1 AM on Thursday from the forecast cone).

Other Useful Products

In addition to the forecast products outlined above, I want you to be aware of a few other aspects of NHC's page. First, their site includes links to a wide variety of satellite imagery (opens in a new window) from across the globe (some making use of techniques we'll cover later), including some "Floater Imagery." These satellite "floaters" provide a "storm-centric" perspective that follows the storm along in time. They're a great way to get a close-up view of a storm as it moves through the tropics.

After each hurricane season ends, NHC also posts a "Tropical Cyclone Report (opens in a new window)" for each storm in the Atlantic and Eastern Pacific. These reports contain a wealth of information about the storm, including its origins and history, relevant meteorological statistics, casualty and damage statistics, and a discussion / critique of how the storm was handled by forecasters as it happened. NHC even occasionally makes changes to a storm's intensity, track details, and wind-speed radii in their post analysis if they believe that a more thorough analysis revealed that mistakes were made in real time. The final estimates are contained in a table of "Best Track" data in the report.

That wraps up our look at the forecasting products from NHC. This wasn't a thorough treatment by any means, though. For now, I just wanted you to get a feel for the commonly-used products that are available. NHC produces other products, such as storm surge forecasts, that we'll cover later. In the meantime if you're interested in NHC and its history, or want to see a few other operational products, I encourage you to check out the Explore Further section below.

Read...

You're already familiar with the in-situ weather observations on land that forecasters have available to them. While land-based surface observational networks have gaps, those gaps are nothing like the gaps that exist in observational networks over the oceans, and the oceans constitute a large part of the tropics! For forecasters tracking tropical cyclones, that means that considerable time may pass between any in-situ observations in or around a particular storm, and some storms may never be sampled directly by an in-situ observation. Sometimes tropical cyclones "find" tiny islands scattered about the oceans, providing in-situ observations like the pressure trace below, from when the eye of Category 5 Hurricane Irma passed directly over a National Ocean Service observation platform on the coast of Barbuda in 2017.

Credit: National Data Buoy Center

The pressure trace is striking, with pressure plummeting down to 27.2 inches of Mercury (921 millibars) as the eye passed, before rapidly recovering. But, a direct encounter of a hurricane's eye with a stationary, in-situ observation site are rather infrequent in the tropics. Out over the oceans, if a tropical cyclone doesn't pass over an island with an observation site, forecasters are limited to the available buoy and ship observations. Many storms miss these observations, however. To see what I mean, check out the image below from the website for the National Data Buoy Center, which shows the locations of buoys (and oil-drilling platforms that collect observations) across much of the North Atlantic. While the East Coast and Gulf Coast of the U.S. seem fairly well sampled by observation sites (though if we zoomed in more, we would see some gaps), farther out over remote ocean waters, a tropical cyclone finding a buoy is akin to finding a needle in a haystack. The buoys over the Atlantic and other oceans around the world are widely spaced, leaving huge gaps of hundreds or thousands of miles between buoy observations.

Credit: National Data Buoy Center

Every now and then, a tropical cyclone will have a "lucky" direct encounter with a buoy, much like Hurricane Irma's encounter with the observation site on the Island of Barbuda, but it's somewhat rare, especially away from the coasts. The relative wealth of buoy observations along the coasts of the United States is augmented by the Coastal-Marine Automated Network (C-MAN), which was developed by the National Data Buoy Center in the early 1980s to better maintain weather observations near the coasts. C-MAN buoys provide crucial observations in coastal areas, particularly when tropical storms and hurricanes approach the East Coast and Gulf Coast states.

Another special buoy program that you should be aware of is the Tropical Atmosphere Ocean (TAO) project, which covers the equatorial Pacific (see image below). TAO buoys have since been combined with buoys from the Japanese TRITON (Triangle Trans Ocean Buoy Network) project to create the TAO / TRITON array, which contains several dozen buoys. As an aside, the TAO / TRITON array has a pretty interesting history, which you can read about in the Explore Further section below, if you would like. Data from the TAO / TRITON array are instrumental in detecting El Niño (opens in a new window) and La Niña (opens in a new window) conditions, which as you'll learn later, can have major impacts on global weather patterns. You can see the locations of the TAO buoys in the image below.

Credit: NOAA

On the TAO / TRITON Web site (opens in a new window), you can access summary plots from individual buoys like this sample summary plot (opens in a new window) from the TAO buoy located at 5 degrees North latitude and 170 degrees West longitude. This summary, which spans from January through May 2026, represents a running five-day mean of wind vectors, elevation of sea level (not counting ocean waves) and temperatures from the sea surface to a depth of 300 meters. When you looked at the plot, you may have noticed that sea level in the vicinity of this buoy is not flat (it varied by almost 25 centimeters, or 10 inches, during this time), nor does it correspond to an elevation of zero. We'll talk more about variations in sea-surface height in a later lesson.

Keep in mind that the data in the top part of the graph shows wind vectors (even though there are no arrowheads like we would usually see on a vector). While standard meteorological convention is to plot and express wind direction as the direction from which the wind blows, since the red slashes are vectors, they extend outward and point in the direction that the wind is blowing toward (exactly the opposite of the standard convention). So, for example, during April and May on this graph, winds predominantly blew from the northeast (toward the southwest) at this buoy. By the way, the length of the red slash indicates the wind speed (in meters per second).

We'll return to data from the TAO / TRITON array later on when we cover El Niño and La Niña, but I wanted you to be aware of the TAO / TRITON project since it's an important component of the system of buoys that monitors tropical weather. Even with special buoy programs, however, the overall picture should be crystal clear to you by now -- stationary ocean buoys simply can't cover the entirety of tropics, and they leave lots of gaping holes in our observing system. Fortunately, data from other buoy programs that aren't stationary can act as a supplement.

Credit: National Oceanographic Partnership Program

One such program is the Global Drifter Program (opens in a new window) (GDP), under the auspice of the Atlantic Oceanographic and Meteorological Laboratory (AOML), which sometimes deploys drifting buoys in the paths of hurricanes, giving forecasters access to crucial surface weather data. NOAA is also increasingly partnering with private companies to deploy buoys ahead of tropical cyclones. In the image on the right, you can see locations of buoys that were deployed ahead of Hurricane Helene in 2024 from a combination of public and private sources.

Another useful program for monitoring tropical ocean conditions is the Argo Program (opens in a new window). Argo deployments began in 2000 and at any given time, the fleet consists of roughly 4,000 robotic "floats" which drift around with the ocean currents, monitoring upper ocean conditions (temperature and salinity) from the surface down to a depth of 2,000 meters. Argo floats can dive and rise to different depths to gather a complete vertical profile, but keep in mind that they do not collect any atmospheric observations (they only measure water conditions). Still, the data they collect, which get assimilated into computer models, can help monitor changes to temperatures in the top layer of the ocean, helping to improve tropical cyclone forecasts. Because they drift around with the ocean currents, their sampling of the ocean can be somewhat "uneven," meaning that some areas may end up with a lot of floats at any given time, while other areas end up with too few.

NOAA also maintains a number of hurricane gliders (opens in a new window), which are remote-controlled underwater vehicles which measure temperature, salinity, and pressure (among other variables) from the surface all the way down to a depth of 1,000 meters. These gliders move slowly (horizontally), so they can't really follow hurricanes around, but they can sample well-known ocean features (like warm currents) that are known to impact hurricane intensity. Data from these gliders gets incorporated into model forecasts, so they provide critical data about the changing thermal profiles in the ocean.

Finally, NOAA also partners with private companies to deploy "uncrewed surface vehicles (opens in a new window)" (USVs) into tropical cyclones the Atlantic. USVs aren't actually buoys, but instead are essentially remote-controlled sailboats capable of measuring winds, air and water temperatures, pressure, and wave heights, among other variables. Since 2021, these USVs, which have been constructed to withstand the fierce conditions inside a hurricane, have sailed missions into select hurricanes, collecting critical data that is transmitted to the National Hurricane Center in real-time, as well as assimilated into computer model forecasts. Unfortunately, public availability of real-time data from private buoy or USV deployment can be somewhat limited, but I have some links below in the Explore Further section below that you can use to track the available data from various public programs.

Even with special buoy and USV programs to observe tropical cyclones, however, our in-situ observing networks for surface observations over the oceans just aren't enough to get a full picture of what's going on in the tropics (or within tropical cyclones) at all times. Therefore, forecasters must rely on other data sources to get a more complete picture of the state of the tropics. We'll start our investigation of those other sources by looking into the role that aircraft observations play in observing weather in the tropics (particularly when tropical cyclones are present). Read on.

Read...

While we're about to focus on the activities of special "Hurricane Hunters" programs that fly into tropical cyclones to collect data, did you know that "Hurricane Hunters" are not the only aviators that contribute to weather analysis and forecasting? As you've learned, the data collected by radiosondes aboard weather balloons contribute to the constant pressure analyses that you're accustomed to (at 500 mb or 300 mb, for example). But, the data captured by instruments on weather balloons is also supplemented by in-situ observations taken by commercial jets. Recall that the standard height of the 300-mb surface is 9,000 meters -- roughly 30,000 feet, which is a representative altitude where commercial aircraft often cruise, for example.

Indeed, the Aircraft Meteorological Data Relay (opens in a new window) (AMDAR), and the Aircraft Communication Addressing and Reporting System (opens in a new window) (ACARS) in the U.S. continuously collect digital communications from commercial aircraft, including weather observations. While these observations aren't freely available to the public in real time, they are incorporated into the initialization of some numerical weather prediction models. But, observations from commercial aircraft are not enough to fully cover the tropics, obviously. To compensate, meteorologists incorporate satellite-derived winds (wind speeds and directions estimated by satellite at specified altitudes), which we'll cover later in this lesson.

To get back to the topic at hand (aircraft observations over the tropics), I point out that commercial and private aircraft prudently fly around big storms. However, groups of intrepid aviators in the U.S. Air Force Reserve and NOAA, popularly known as "Hurricane Hunters," are available to fly reconnaissance missions into tropical cyclones whenever they develop. During the off-season, they also fly into fierce winter storms that rage along the Atlantic and Pacific Coasts.

U.S. Air Force Hurricane Hunters

Stationed at Keesler Air Force Base in Biloxi, Mississippi, the U.S. Air Force Hurricane Hunters formally belong to the 53rd Weather Reconnaissance Squadron. During hurricane season, the squadron is ready to spring into action at any sign of a tropical cyclone developing in the region spanning approximately from the mid-Atlantic Ocean (longitude 55 degrees West) to the Caribbean Sea and the Gulf of Mexico. Hurricane Hunters also fly reconnaissance into tropical cyclones over the central and eastern Pacific Ocean, particularly those that might pose a threat to Hawaii or mainland North America. U.S. Air Force Hurricane Hunters rely on the durable WC-130-J aircraft (see below) equipped with an arsenal of weather instruments to monitor tropical cyclones.

NOAA Hurricane Hunters

The Air Force Hurricane Hunters don't have the "market cornered" on hurricane hunting. Indeed, NOAA also flies specially equipped aircraft into hurricanes to collect observations. But, the mission of the NOAA Hurricane Hunters goes beyond just routine reconnaissance. The Hurricane Research Division (opens in a new window) (HRD), under the auspice of the Atlantic Oceanographic and Meteorological Laboratory (AOML) within NOAA, flies specially equipped aircraft into hurricanes and other tropical weather systems to conduct research to advance the scientific understanding of the tropics and, in the process, improve weather forecasts. For this reason, NOAA Hurricane-Hunter flights often serve as testing grounds for new and experimental instruments and strategies for making various atmospheric measurements (which may or may not eventually become operational on all Hurricane Hunter flights and in other contexts). HRD has a long and storied history in the pursuit of excellence in hurricane research, which you can read about (opens in a new window), if you're interested. The NOAA Hurricane-Hunter research fleet (see below), which consists of two WP-3D turboprops (sometimes referred to as "NOAA P-3s") and a Gulfstream jet, operate from NOAA's Aircraft Operations Center (opens in a new window) in Lakeland, Florida.

Flying into the storm

For most of the missions flown into hurricanes, the standard flight level is 700 mb (recall that the standard 700-mb height is 3,000 meters, or around 10,000 feet). When forecasters at the National Hurricane Center spot a suspicious cluster of tropical showers and thunderstorms on satellite imagery, Hurricane Hunters may fly a Low-level Investigative Mission at 500 or 1500 feet above the sea surface. At such altitudes, wind data can reveal a closed, low-level circulation that allows forecasters to upgrade the system to a tropical depression. As the depression develops into a tropical storm, Hurricane Hunters typically increase the flight level to 850 mb (recall that the standard 850-mb height is 1,500 meters, or about 5,000 feet). As the tropical cyclone further intensifies, Hurricane Hunters increase their flight level to 10,000 feet (the conventional maximum flight level inside hurricanes), unless they need to deviate due to special circumstances (such as multiple planes flying the storm at once: They must stay at least 2,000 feet in altitude apart). I should note here that Hurricane Hunters fly at higher altitudes on other missions (such as reconnaissance in winter storms).

When Hurricane Hunters enter a tropical cyclone, they often fly an alpha pattern (the animation below will give you a general idea of what one looks like), or a series of alpha patterns. After flying the first diagonal across the storm (usually at least 105 nautical miles (120 statute miles) on either side of the center), executing a successful alpha pattern amounts to simply making a series of left-hand turns. In this way, the plane never flies directly into the teeth of the wind (remember that northern hemispheric low-pressure systems have a counterclockwise circulation). Avoiding the strong direct headwinds allows the aircraft to save fuel and fly longer missions. Moreover, the aircraft collects data in all four quadrants of the storm after making only two passes through the center. The aircraft passes through the center about every two hours and continues the pattern until the next plane is ready to take its place if NHC wants fixes on the storm every six hours and "round-the-clock" surveillance. If NHC wants fixes on the storm less frequently (every 12 or 24 hours, for example), then there's no immediate replacement aircraft when the mission is complete (each mission lasts roughly eight hours, on average).

Alpha Pattern (0:09)

Hurricane Hunters may execute other flight patterns or fly at other altitudes, depending on the goals of the mission. NOAA's Gulfstream jet, for example, often flies missions to collect observations in the environment around and ahead of hurricanes. Often flying at altitudes as high as 45,000 feet, the Gulfstream jet can assess the winds that steer these storms. For instance, as Hurricane Dorian moved perilously close to the Southeast coast on September 4, 2019, the Gulfstream jet flew around the periphery of the storm and emphasized sampling the environment to its east an northeast (to ensure the best understanding of the environment the storm was going to move into), so its flight-track map (opens in a new window) bears no resemblance to an alpha pattern.

I should note here that the range of reconnaissance aircraft varies from 2,200 to 3,600 miles (the range depends, in part, on flight altitude). Thus, newly forming tropical cyclones over the eastern and central Atlantic Ocean are, for all practical purposes, out of range for reconnaissance aircraft. In its place, tropical forecasters rely on remote sensing from satellites to assess the intensity and structure of storms (more to come later in this lesson).

To see what the Hurricane Hunters are up to on any given day, check out the Tropical Cyclone Plan of the Day (opens in a new window). If you're interested in learning more about the operations of the Hurricane Hunters, you may enjoy the resources in the Explore Further section below. Otherwise, up next, we'll turn our attention to the instruments and sensors that Hurricane Hunters have in their arsenal to collect crucial data.

Read...

Now that you know about how U.S. Air Force and NOAA Hurricane Hunters operate, let's look at the major tools they have in their arsenal for collecting data. As an overall package, their instrumentation is called the Improved Weather Reconnaissance System (IWRS). Instruments mounted on the planes frequently collect flight-level data, which include air temperature, dew point, wind velocity, air pressure, and altitude of the aircraft (altitude is measured by radar (opens in a new window)). Onboard computers process flight-level data every second, but "complete" weather observations take 30 seconds. Moreover, the computers are tied to the aircraft's navigational system, allowing the flight meteorologist to determine the position (or location) of each observation. These data are also sent off the plane in real time in various coded formats. But, of course, meteorologists aren't just interested in observations at flight level. So, what tools do Hurricane Hunters have to detect weather conditions all the way down to the surface?

Dropwindsondes

Dropwindsondes (sometimes called "dropsondes" or just "sondes" for short) are instrument packages designed to be dropped from aircraft in order to take observations along their path to the surface. Dropsondes are very similar to the rawinsondes you learned about in your previous studies, but instead of ascending aboard a weather balloon, the descend toward the earth's surface. They have a long history of use in aircraft reconnaissance of tropical cyclones dating back to the 1950s. In the "old days," however, they couldn't be used to gather wind data in areas of clouds or rain. Therefore, forecasters at the National Hurricane Center "extrapolated" flight-level winds (700 mb) to the ocean surface. By "extrapolate" I mean that forecasters multiplied the maximum winds at flight level by a fraction between 0.80 and 0.90 to estimate the maximum surface winds (you will learn later in the course that the fastest winds in a hurricane typically blow at altitudes of several hundred meters above the sea surface).

This method ultimately proved to be fairly reliable, except for a few "misbehaved" storms. While scientific principles laid the groundwork for the extrapolation technique used by the National Hurricane Center, data collected by Global Positioning System (opens in a new window) (GPS)-based dropwindsondes beginning in 1997 proved that the scheme works pretty well most of the time. But without reservation, GPS-based dropwindsondes have improved the accuracy of estimating maximum surface winds in a hurricane (and model accuracy for predicting the path of tropical cyclones). If you're interested in learning more about the benefits of using GPS dropwindsondes, check out this research paper (opens in a new window).

Credit: (Left) Wikimedia Commons; (Right) NCAR

Hurricane Hunters routinely release dropwindsondes during their missions to penetrate the center of the a tropical cyclone, but the NOAA Gulfstream jet also releases them in the environment around the tropical cyclone to collect data about the surrounding environment. Immediately after a dropsonde gets released, a drogue parachute deploys, which stabilizes the sonde's descent by stopping it from tumbling, which is especially critical in the turbulent air motions within the eyewall. During descent, the in-situ sensors on the dropsonde (see image above) relay observations of pressure, temperature and relative humidity back to the aircraft via radio until the sonde splashes down into the ocean. These observations are processed by computers on board the aircraft as well as on the ground (computers can process real-time observations from multiple dropsondes simultaneously). For the record, on a typical mission, Hurricane Hunters may release 20-40 dropsondes, and in an average hurricane season, they can release well over 1,000 dropsondes on training and storm-reconnaissance missions. The data from dropsondes gets assimilated into some numerical weather prediction models, which improves forecast accuracy.

While most dropsonde observations are in situ, technically the method for measuring wind speed using dropsondes qualifies as remote sensing. That might sound strange, but each sonde contains a full GPS, which allows satellites to remotely track its exact location. By tracking the changes in the sonde's location in time, computers calculate the wind speed by subtracting out the terminal fall speed and friction. Ultimately, dropsondes are often the best observation source for minimum surface pressure as well as for directly sampling low-level winds in the eyewall of a tropical cyclone. These data are immensely valuable for determining the intensity of a particular storm. Ongoing research continues to make dropsondes smaller (so-called "minisondes" are now available) and less expensive.

Uncrewed Aerial Vehicles (UAV)

Credit: NOAA

In recent years, NOAA has collaborated with private companies to develop "uncrewed aircraft systems" (UAS) or "uncrewed aerial vehicles" (UAVs), which they can deploy in addition to dropsondes during their flights. These flying drones (like the one pictured on the right) are capable of flying for more than one hour, can ascend and descend very rapidly, and have been designed to withstand the harsh conditions within a hurricane. They can fly as low as 50 feet above the ocean surface, and up to 15,000 feet above sea level, measuring pressure, temperature, humidity, and winds (among other variables) with their onboard instruments. These data are transmitted to the National Hurricane Center in real-time and get assimilated into some computer models, much like data from dropsondes. Since UAVs can stay in the air longer than a dropsonde, they're capable of covering more area within a tropical cyclone than a single dropsonde can.

Doppler Radar

While all Hurricane Hunter aircraft have radar onboard for helping the pilots navigate, the planes used by the NOAA Hunters also have radars aboard for data collection. Recall that Doppler Radar is an active remote sensor: It sends out a pulse of energy and measures what gets scattered back to it. The Gulfstream jet has two radars (one on the nose for help with navigation, and a Doppler radar on the tail), but the weather instrumentation aboard each NOAA WP-3D actually includes three radars (opens in a new window) (one on the nose for navigation, one on the lower fuselage, and a Doppler radar on the tail). In addition to giving insight into the precipitation occurring in the storm, recall from previous courses that Doppler radars have the capability of detecting wind velocities, which helps meteorologists observe the storm's wind field. For example, check out the side-by-side images below, collected from Tail Doppler Radar, showing reflectivity (left) and winds (right) at 2 kilometers in Hurricane Laura (2020).

Credit: AOML

Keep in mind that the range of the ground-based system of radars along the East Coast of the United States (and the Caribbean Islands) is limited and only captures hurricanes that are relatively close to land (opens in a new window), making radar data from the NOAA Hurricane Hunters indispensable as an operational forecasting and research tool. Furthermore, data from these airborne Doppler radars are assimilated into some operational forecasting models. In case you want to look at data from current or past hurricanes and tropical storms, the Hurricane Research Division provides an archive of their radar data (opens in a new window), but note that radar data is not available for every storm.

As useful as Tail Doppler Radar data is for analyzing the wind field within a tropical cyclone, it doesn't actually detect the surface wind field (neither does land-based Doppler radar when a storm is close to land, for that matter), which is obviously of great interest to forecasters. In the "good old days", to get a feel for the surface winds, the flight meteorologist applied what could be considered an aviator's version of the Beaufort Wind Scale (opens in a new window). Instead of observing canvas sails in the wind (as Sir Francis Beaufort did), the flight meteorologist estimated wind speeds by the "look" of the sea. Indeed, the appearance of white caps, foam, sea spray, patches of green foam, or streaks in ocean foam offers clues that allow an experienced flight meteorologist to gauge the speed (and direction) of surface winds. A major shortcoming of this approach was that sometimes the weather officer just couldn't see the sea surface (obscured by heavy rain, clouds, darkness, etc.). Furthermore, this approach is somewhat subjective; even when the weather officer could see the ocean surface, its appearance could vary based on the altitude of the flight.

Other Tools for Measuring Surface Winds

Estimating surface winds within a tropical cyclone is a challenging problem, but we aren't just limited to what the flight meteorologist can see on the ocean surface. The development of remote sensing instruments aboard Hurricane Hunter flights has helped forecasters more objectively estimate surface winds. One such instrument is a passive remote sensor called the Stepped Frequency Microwave Radiometer (opens in a new window) (SFMR), which has been in operation since 2008. The underlying principle that the SFMR employs is that the bulk radiative properties of a substance depend on the "nature" of the substance (size, shape, exposed surface area, etc.). By changing the nature of a substance, its radiative behavior changes, too. If that seems odd to you, think about the difference between fog and a glass of water. Both consist of liquid water, yet you can see right through a class of water, while fog obscures your vision because of the different ways that light scatters off the fog droplets.

Likewise, the nature of a substance can impact the emission of radiation, which serves as the basis for the SFMR's ability to detect surface wind speeds. You may not realize it, but the sea emits some natural microwave radiation (everything does, actually), but these emissions from the sea are not very large. In microwave-cooking terms, for example, you couldn't cook anything using the microwave radiation emitted by the ocean, but I assure you that natural microwave emissions from the sea are detectable by airborne radiometers like the SFMR.

Credit: NOAA

A relatively smooth ocean (winds are relatively light) emits a certain amount of microwave radiation. But, winds blowing over the ocean change the nature of the surface (and thus, its radiative properties). As wind speed increases, patches and streaks of sea foam (essentially, bubbles) start to cover the ocean surface, and it turns out that these patches and streaks of sea foam emit more microwave energy than a smooth, "foamless" sea. The bottom line here is that the SFMR can infer surface wind speeds by detecting increases in microwave emissions from a foamy sea. And, the coverage of sea foam is a function of wind speed (the faster the wind speed, the foamier the sea).

Of course, it's raining to beat the band outside of the eye of a hurricane (particularly in the eyewall), and raindrops certainly would attenuate microwave emissions from the sea (by "attenuate," I mean that raindrops absorb microwave energy from the sea and thus limit the intensity of the energy reaching the SMFR). But the SFMR measures microwave emissions at six different frequencies between 4.6 and 7.2 Gigahertz (hence, the term "stepped frequency"). At any rate, scientists account for the absorption and scattering properties by raindrops at each frequency. By "stepping" through each frequency, scientists can correct for the attenuation of microwave emissions by rain. In the process of correcting for this attenuation, the rainfall-rate can be recovered, yielding bonus data from the SFMR.

I should point out, however, that research has indicated some inconsistencies with surface wind measurements from the SFMR. Wind estimates in very intense hurricanes seem to have a high bias (estimates are too fast). Furthermore, the depth of the ocean in shallow areas near land as well as sea-surface temperatures can impact the behavior of the sea surface (and therefore the microwave emissions). So, while the SFMR continues to operate on Hurricane-Hunter flights, research to calibrate these measurements is ongoing, and forecasters at the National Hurricane Center question their reliability (and sometimes the data are not even made public). NOAA's Hurricane Hunters are currently experimenting with next generation instruments, such as the Rain, Ocean, Atmosphere Radar System (opens in a new window) (ROARS), which may be able to replace the SFMR for surface wind retrieval from Hurricane Hunter flights, but unlike the SFMR, ROARS is an active remote sensor (it's another specialized radar mounted on the plane).

What ultimately happens to all the data that Hurricane Hunters collect on their flights? It gets transmitted (in various coded formats) to the National Hurricane Center. Perhaps the most commonly used coded message is the Vortex Data Message (VDM), which focuses on conditions near the core of the storm. These messages contain a wealth of data about the current strength and demeanor of the storm, so we're going to look at them in-depth in the next section. In the meantime, the Explore Further section below contains some links for tracking data from Hurricane Hunters in real time. Check it out, if you're interested.

Read...

Vortex Data Messages (VDMs) are perhaps the most commonly cited coded message from the Hurricane Hunters, so we're going to walk through decoding one in detail (what information each item contains, along with various codes and units). Make sure to use the links available to navigate easily between each item and its translation.

Before we begin, however, I should point out that the format of VDMs was significantly changed in 2018. The guide for decoding VDMs below is based on the current format, but if you happen to research VDMs for storms that occurred prior to 2018, the format will be different. To help you with any old VDMs you may encounter if you're researching past tropical cyclones, check out the materials I have for you in the Explore Further section below.

The sample VDM that I will decode below was actually the prototype that NHC mocked up when they announced the format change, so it's based on data collected in a real hurricane prior to 2018 (Otto in 2016, to be exact). VDMs are transmitted in an alphabetical manner, and in each report, a letter of the alphabet is followed by information about the center of the tropical circulation. This information includes such items as lat/long of the center, temperatures inside and outside of the eye of the storm, wind information, minimum pressures, etc.

Sample Report: (clicking on each element will take you to the explanation)

URNT12 KNHC 241133
VORTEX DATA MESSAGE   AL162016
A. 24/11:12:50Z
B. 10.97 deg N 082.77 deg W
C. 700 mb 2927 m
D. 977 mb
E. 210 deg 11 kt
F. CLOSED
G. C20
H. 90 kt
I. 144 deg 5 nm 11:07:00Z
J. 253 deg 78 kt
K. 158 deg 8 nm 11:07:30Z
L. 95 kt
M. 314 deg 5 nm 11:17:00Z
N. 033 deg 108 kt
O. 349 deg 14 nm 11:17:30Z
P. 10 C / 3042 m
Q. 18 C / 3045 m
R. NA / NA
S. 12345 / 7
T. 0.02 / 1 nm
U. AF301 0616A OTTO OB 13
MAX FL WIND 108 KT 349 / 14 NM 11:17:00Z

Breakdown of the message:

MESSAGE HEADER

The first line of the message is the code used to identify a vortex message in various meteorological databases, followed by the date and time (Zulu) the message was transmitted. Back to Message

A. DATE AND TIME OF FIX

The time when the center of the storm was located or "fixed". 24/11:12:50Z means the report is from the 24th day of the month, at 11:12:50Z (hours:minutes:seconds of Zulu time). Back to Message

B. LOCATION OF THE VORTEX CENTER ("FIX")

Latitude and Longitude of the vortex fix in decimal degrees. 10.97 deg N 082.77 deg W means 10.97 degrees North latitude, 82.77 degrees West longitude. This information can be used to plot the latest location of the storm center; comparing the current position to previous positions gives the recent movement of the storm. Back to Message

C. MINIMUM HEIGHT AT STANDARD LEVEL

Standard level refers to certain "slices" of the atmosphere used by meteorologists around the world. The exact altitude of each of these slices relates to the pressure. The lower this height is below the "standard" height indicates how low the pressure is inside the hurricane; stronger storms tend to have lower pressures. The number reported is in meters. Hurricane Hunters fly storms at the "surface" (500 to 1500 feet above the water), 925 millibars (2500 feet or 762 meters), 850 mb (4780 ft or 1457 m), or 700 mb (9880 ft or 3011 m).

The aircraft will fly using an autopilot set to follow a constant pressure altitude. For example, when flying a mission at 700 mb, the aircraft's pressure altimeter will read 9,880 feet all day. But as the plane flies into lower pressure, the plane will actually be flying closer to the ground. A radar altimeter bounces radar pulses off the ground and tells the crew how high they actually are, and the meteorologist uses this number to calculate the height of standard surface. In the example above, the 700 millibar height was 2927 meters, which is 84 meters lower than the standard height of 3011 meters. When flying low-level missions (below 1500 feet) this block is reported as NA (Not Applicable). Back to Message

D. MINIMUM SEA-LEVEL PRESSURE

This value, computed from dropsonde or extrapolation, is one of the key pieces of information which indicates the intensity of the storm. "Standard" sea-level pressure is 1013 millibars. Since hurricanes, tropical storms, and tropical depressions are all low-pressure systems, the pressure reported here is almost always lower than standard. The lower the pressure, the more intense the storm. The word "EXTRAP" precedes any pressures extrapolated from aircraft sensor information; if the word "EXTRAP" is not there, it means the pressure was measured directly by a dropsonde released from the aircraft, and is usually more accurate. In this case it was 977 mb. There may be small fluctuations in pressure due to normal, daily pressure rises and falls. Of course, a dropsonde rarely lands precisely in the exact center of the storm where winds are calm (where the true lowest pressure would be found), so forecasters often adjust the lowest readings from the dropsondes using a rule of thumb that the "real" minimum pressure is the lowest value measured by dropsonde minus 1 mb for every 10 knots of surface wind speed.  Back to Message

E. DROPSONDE CENTER WIND SPEED AND DIRECTION

The wind direction (in degrees) and speed (in knots) at the center of the storm as measured by dropsonde. In this case, winds were from 210 degrees (south-southwest) at 11 knots. In well-developed tropical cyclones, winds at the center will typically be fairly weak compared to the much faster winds found in the eyewall. Back to Message

F. EYE CHARACTER

This is a brief description of what the eye looks like on radar. "CLOSED" means that the eye is completely surrounded by a ring of thunderstorms. "OPEN NE" means there is a break in the eyewall to the northeast, etc. If the eye is not at least 50% surrounded by eyewall clouds, this item and Item G will be reported as "NA" (Not Applicable). Back to Message

G. EYE SHAPE ORIENTATION AND DIAMETER

Eye shapes are coded as follows: C-circular; CO-concentric; E-elliptical and all diameters are transmitted in nautical miles. In this case, "C20" translates to a circular eye with a diameter of 20 nautical miles. Orientation of major axis of an ellipse is transmitted in tens of degrees. Example: E09/15/5 means elliptical eye oriented with major axis through 90 degrees (and also 270 degrees), with length of major axis 15 nautical miles, and length of minor axis 5 nautical miles. CO8-14 means concentric eye with inner eye diameter 8 nautical miles, and outer diameter 14 nautical miles. The "healthiest" hurricanes usually have a small, circular eye. A concentric eye (a ring inside a ring) is a phenomenon that may signal a temporary weakening while the storm reorganizes (which we'll explore later in the course). An eye diameter that shrinks (compared to the previous vortex message) may signal intensification: Just as a twirling ice skater spins faster as she pulls in her arms, a hurricane may "spin" faster as its eye gets smaller. Eye diameters are usually 10-20 nautical miles, while we sometimes see them smaller than 5 nautical miles or larger than 60 nautical miles in rare instances. Back to Message

H. ESTIMATE OF MAXIMUM SURFACE WIND SPEED OBSERVED ON INBOUND LEG (IN KNOTS)

90 kt means the highest maximum sustained surface wind speed is 90 knots on this particular inbound leg. The Stepped Frequency Microwave Radiometer (SFMR) typically takes this measurement, so it is not considered to be highly reliable (and some VDMs may just have "NA" in this line). Back to Message

I. BEARING, RANGE, AND TIME OF THE  WIND SPEED OBSERVED IN ITEM H

The "bearing" is the direction (given in degrees) from the center in which the maximum surface wind speed was recorded (similar to compass headings, except these bearings are in reference to "true" instead of "magnetic" north). Due north is 0 degrees, east is 90 degrees, south is 180 degrees, and west is 270 degrees. The bearing in the example is 144 degrees, which means the surface wind speed was recorded southeast of the center. To pinpoint where this was, you also need to know how far away it was: the "range". In this case, the 90 knot wind reported in part H was found 5 nautical miles (about 6 statute miles) southeast of the center at 11:07:00Z (11:07Z exactly). Back to Message

J. MAXIMUM INBOUND FLIGHT-LEVEL WIND SPEED AND DIRECTION

The highest wind speed in knots (and its direction) observed on the last leg inbound to the storm center. These winds are at flight level, and were measured directly by the aircraft's instruments. In the example, the peak wind was 253 degrees, 78 knots, which means the wind was blowing from a direction of 253 deg (west-southwest) at a speed of 78 kts (about 90 miles per hour). Back to Message

K. BEARING, RANGE, AND TIME OF THE WIND OBSERVED IN ITEM J

Same method as reporting bearing, range, and time for the surface winds (see Item I, above). In this example, the 78 knot flight-level wind speed reported in Item J was found 158 degrees (south-southeast) of the center, and 8 nautical miles from the center at 11:07:30Z (in this case, that's 30 seconds after the maximum surface wind speed was observed). Usually the strongest winds are found in the "eyewall" surrounding the eye (if there is an eye), and this gives an idea of how large the center (or eye) of the storm is. Back to Message

L. ESTIMATE OF MAXIMUM SURFACE WIND SPEED OBSERVED WHILE FLYING OUTBOUND (IN KNOTS)

95 kt means the highest maximum sustained surface wind speed estimated while flying outbound from the storm center is 95 knots. Estimates are made in the same fashion as those in Item H, and the same caveats apply. Back to Message

M. BEARING, RANGE, AND TIME OF THE WIND SPEED OBSERVED IN ITEM L

Same method as reporting bearing, range, and time for previous wind observations. In this example, the 95 knot estimated surface wind occurred 314 degrees (northwest) of the center, and 5 nautical miles from the center at 11:17:00Z (exactly 1117Z). Back to Message

N. MAXIMUM OUTBOUND FLIGHT-LEVEL WIND SPEED AND DIRECTION

The highest wind speed in knots (and its direction) observed while flying outbound from the storm's center. These winds are at flight level, and were measured directly by the aircraft's instruments. In the example, the peak wind was 33 degrees at 108 knots, which means the wind was blowing from a direction of 33 degrees (northeast) at a speed of 108 kts (about 124 miles per hour). Back to Message

O. BEARING, RANGE, AND TIME OF THE WIND OBSERVED IN ITEM N

Same method as reporting bearing, range, and time for previous wind observations. In this example, the 108-knot flight-level wind occurred 349 degrees (north-northwest) of the center, and 14 nautical miles from the center at 11:17:30Z (that's 30 seconds after the maximum surface wind speed was observed while flying outbound). Back to Message

P. MAXIMUM FLIGHT-LEVEL TEMPERATURE / PRESSURE ALTITUDE OUTSIDE THE EYE

This gives an idea of the general temperature surrounding the eye. "Standard" temperature at 700 mb (where we fly most hurricanes) is about -5 degrees Celsius, but in the tropics, it's usually 10 to 15 degrees warmer than "standard". What you especially want to look for is how it compares to the temperature inside the eye, in Item Q. The example shows a temperature of 10 degrees Celsius (50 degrees Fahrenheit) at an altitude of 3042 meters (9,980 feet). The altitude is included because the airplane bumps up and down due to turbulence and other factors, and minor changes in the temperature may be due to changes in altitude. Back to Message

Q. MAXIMUM FLIGHT-LEVEL TEMPERATURE / PRESSURE ALTITUDE INSIDE THE EYE

This is yet another indicator of how "healthy" the storm is. One of the unusual features of a hurricane is that it is warmer inside the eye than outside. What you want to look for here is how much warmer it is than the temperature reported outside the eye in Item "P." A developing storm may be only slightly warmer inside the center, while a strong hurricane may be 10 degrees warmer (or more). In this example, the eye temperature of 18 degrees Celsius (64 degrees Fahrenheit) is eight degrees Celsius higher than the temperatures immediately outside the eye. Be sure to look at the remarks in Item "U" to see if there was an even warmer temperature found inside the eye (but more than 5 miles from the fix position). The aircraft was at a pressure altitude of 3045 meters (9,990 feet). Back to Message

R. DEW POINT TEMPERATURE / SEA SURFACE TEMPERATURE INSIDE THE EYE

If available, the dew point measured at the center of the storm (in degrees Celsius) will be reported here; however, a dew point observation was unavailable in this case, so it was reported as "NA" (not applicable). The second part of Item R is no longer used, as the aircraft do not carry the infrared sensors needed to measure sea surface temperature. Back to Message

S. FIX DETERMINED BY / FIX LEVEL

The first string of numbers indicates what the meteorologist used to find the center of the storm, using numbers 1 through 5, as follows: 1-Penetration, 2-Radar, 3-Wind, 4-Pressure, 5-Temperature. After the solidus ("/"), you'll find one or two numbers which show at what level(s) the center was found, as follows: 0-surface, 1-1500 ft, 8-850 mb, 7-700 mb, 5-500 mb, 4-400 mb, 3-300 mb, 2-200 mb, 9-925 mb.

Example: 12345/7 means the fix was determined by all five means: penetration, radar, winds, pressure, and temperature. The fix was made at 700 mb (approx 10,000 feet). If a calm spot was seen on the surface of the water, the fix level could have been "07" to indicate the surface and the 700 mb center were found within 5 nautical miles of each other. Back to Message

T. NAVIGATION FIX ACCURACY / METEOROLOGICAL ACCURACY

These numbers give an estimate of how accurate the position is, in nautical miles. "Navigation accuracy" is a gauge of how well the navigation equipment is operating (within 0.02 nautical miles, in this case). The "Meteorological Accuracy" depends on how well the storm center can be defined by the meteorological data: if there is a sudden, sharp wind shift, and the temperature peak and pressure drop all coincide, the meteorological accuracy will be a small number. A weaker storm will probably have a larger meteorological accuracy. In this case, the meteorological accuracy was one nautical mile. Back to Message

U. REMARKS SECTION

Always starts with the Mission ID (a unique identifier for each mission): AFXXX AABBC NAME OB DD

Agency: Either AF (Air Force Reserve Hurricane Hunters)
 or NOAA (National Oceanic and Atmospheric Agency)
XXX: Tail number of the aircraft
AA: Number of missions flown on this storm system
BB: Depression number (or "XX" if it's not a depression or greater)
C: Ocean basin. "A"=Atlantic, "C"=Central Pacific, "E"=Eastern Pacific
NAME: Storm name, or words CYCLONE (for depression) or INVEST.
OB: "Observation."
DD: Observation number.

Example: AF301 0616A OTTO OB 13 means Air Force Reserve aircraft number 301 is flying the 6th mission on Hurricane Otto, which is the 16th tropical cyclone of the season in the Atlantic/Gulf/Caribbean, and is making the 13th observation of the storm.

The flight meteorologist may add details of anything he or she feels are interesting to note. There are some standard remarks: "MAX FL WIND 108 KT 349 / 14 NM 11:17:00Z" reminds the public about the location and time of the maximum flight-level wind found in the storm overall (in this case, it's the outbound wind described in Items N and O). Another standard remark is given anytime a temperature peak is seen more than 5 nautical miles from the center location. The flight meteorologist may also further describe characteristics of the eye (such as "STADIUM EFFECT" if the clouds form a solid wall all around the eye, and stretch up and outward to reveal a circle of clear sky above, similar to a football stadium that's 50,000 feet tall), among other things. Back to Message

I hope you'll use this section as a guide when you have to interpret VDMs, but VDMs aren't the only coded messages that Hurricane Hunters transmit. If you're interested in learning more about other types of coded messages, check out the Explore Further section below. Otherwise, it's time to move on to the use of satellites in observing tropical cyclones.

Read...

One of the primary goals of this course is for you to develop the ability to comprehend the discussions, advisories, and forecasts issued by the National Hurricane Center. In this section we're going to look at another commonly referenced term found in many NHC discussions -- the Dvorak Technique. For starters, check out the excerpt from the NHC forecast discussion from 5 PM EDT on October 25, 2025, for Hurricane Melissa, which forecasters suspected was about to undergo a round of rapid intensification.

ZCZC MIATCDAT3 ALL
TTAA00 KNHC DDHHMM

Hurricane Melissa Discussion Number  18
NWS National Hurricane Center Miami FL       AL132025
500 PM EDT Sat Oct 25 2025

Melissa is likely beginning a period of rapid intensification (RI).
Since both the NOAA-P3 and Air Force Reserve C-130 aircraft sampled
the system this morning, the satellite presentation has continued to
improve, with cold -75 to -80 C cloud tops wrapping around the
center with hints of an eye starting to appear on visible images.
The eye is also becoming better defined on radar images out of
Jamaica with an overall diameter of around 20 n mi. In addition, an
earlier GMI microwave pass received after the prior advisory showed
a well-defined cyan ring on the 37-GHz, which is often a harbinger
of RI. Subjective Dvorak intensity estimates were T5.0/90 kt from
SAB, and T4.5/77 kt from TAFB. The objective estimates from UW-CIMSS
were a little lower, but are also quickly rising, and the initial
intensity will be set at 80 kt this advisory, blending these
intensity estimates.

If you read the above excerpt, you should note a few things. First, forecasters were able to benefit from data collected by the Hurricane Hunters that we just learned about. They also based their analysis on several satellite-based remote sensing tools that we're about to learn about, including the Dvorak Technique. In a nutshell, the Dvorak Technique is an analysis procedure for estimating the intensity of tropical cyclones based on cloud patterns on satellite imagery. The technique is named after Vernon Dvorak, who pioneered the technique with his research in the 1970s and early 1980s.

How does the Dvorak Technique work? In a nutshell, it's really just a statistical system that combines observed cloud patterns on satellite imagery with a set of established guidelines (based on years of observations) to estimate the intensity of a tropical cyclone. These estimates are called T Numbers, which range from 1.0 to 8.0. So, the reference to "T5.0" and "T4.5" in the discussion above correlated to intensity estimates of 90 knots and 77 knots, respectively. If you look at the formal Dvorak scale (opens in a new window), you'll notice that the scale refers to a "CI Number" (Current Intensity Number) and not, specifically, a "T Number". However, the two are usually highly similar. Forecasters arrive at a T Number (which estimates a tropical cyclone's intensity) by comparing cloud patterns on a single satellite image (sometimes referred to as the "satellite presentation") to a set of statistical guidelines. Once forecasters determine a T Number, they can then modify it in an attempt to preserve the continuity of past (recent) estimates and account for recent trends in the satellite presentation (indicative of intensification or weakening). The final value, after any modifications, represents the Current Intensity (CI) Number.

Manually conducting a complete Dvorak analysis to arrive at a specific T Number (and adjust to a CI Number) is a fairly complex process, which requires a great deal of experience to perform well. Don't worry, you won't be asked to perform such detailed analyses in this course, but if you're interested in seeing some more details, you may be interested in some of the links in the Explore Further section below. Still, it probably won't come as a surprise to you that some subjectivity exists when forecasters attempt to classify cloud patterns, which is one drawback to the technique. Indeed, in the Hurricane Melissa forecast discussion above, note that two different groups of forecasters arrived at slightly different T Numbers. However, the discussion also references "objective estimates" which refers to objective computer analyses that have been developed to take the subjective element out of Dvorak estimations. If you're interested in learning more about this evolution and the details of these objective schemes, check out the Explore Further section below. One standard objective technique is the Advanced Dvorak Technique (ADT), which attempts to achieve the accuracy of the original Dvorak Technique without the subjective limitations. Like the manual Dvorak Technique, the ADT can be applied to any tropical cyclone across the globe, in any phase of its life-cycle.

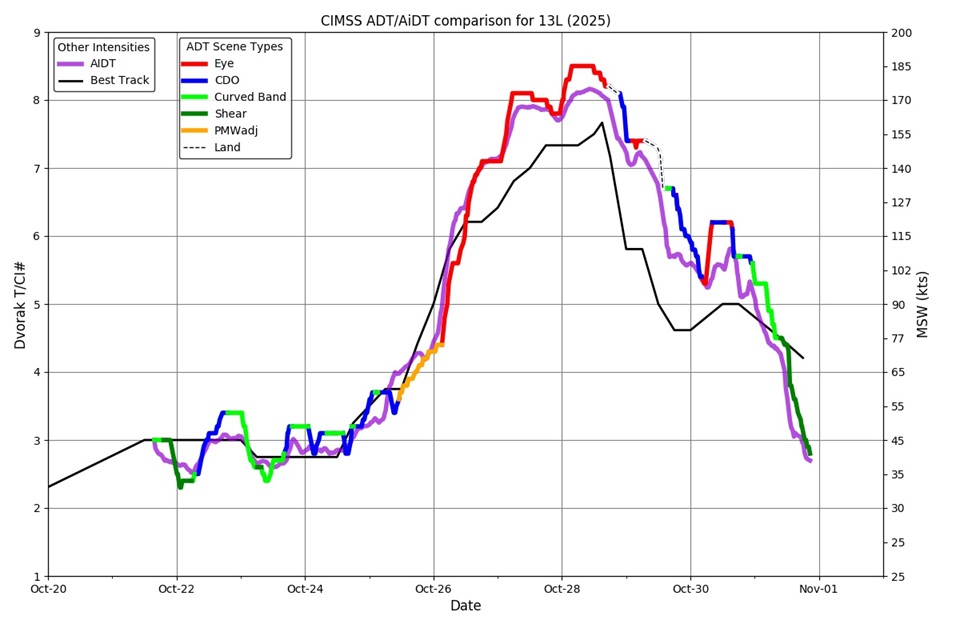

Forecasters have also developed a version of the ADT enhanced by artificial intelligence, known as the Advanced (AI-Enhanced) Dvorak Technique, or AiDT. In short, the machine learning models that underlie the technique are based on 12 years of ADT estimates for tropical cyclones compared to their official best track estimates of intensity. By learning from the errors in the training dataset, the AiDT is able to improve upon the ADT estimates, resulting in roughly a 20% improvement, on average. The graph below plots both the ADT and AiDT CIs for Hurricane Melissa throughout its life. Note that much of the time, the differences between the ADT and AiDT estimates are quite small, but when there is a more noticeable difference, the AiDT number is usually closer to the official best track intensity (the black line).

Credit: CIMSS

You may also notice that around the time of its peak intensity, Melissa's ADT and AiDT numbers were actually above 8.0! How is that possible, if the scale stops at 8? Well, for starters, let's look at Melissa on enhanced infrared imagery Melissa on enhanced infrared imagery (opens in a new window) early on October 28 (near the time when the intensity peaked). The storm had a perfectly circular eye surrounded by a highly symmetric ring of very cold cloud tops, approaching 180 Kelvin (about -93 degrees Celsius)! Melissa was about as close to "satellite perfection" as it gets, and the original Dvorak technique didn't account for a warm eye embedded so deeply in cloud tops that cold. In such cases, the objective computer-based Dvorak approaches may produce T/CI numbers slightly greater than 8, though this doesn't happen very often (it's a sign of an incredibly impressive satellite presentation).

While using objective approaches like the ADT and AiDT has many advantages, performing subjective analyses manually still has value. Referring back to the Hurricane Melissa discussion near the top of the page, you'll notice that forecasters referenced both subjective and objective approaches in their analysis. Indeed, analysts and researchers still regularly conduct manual Dvorak analyses. While you won't have to do complete Dvorak analyses in this course, conducting some basic Dvorak classifications can still help you become "one with the atmosphere" so that you can really be in tune with how a particular storm is evolving. As your experience grows in tropical weather forecasting, you will discover that tropical cyclones appear in a variety of sizes and shapes on satellite imagery. A major component of the Dvorak Technique hinges on forecasters classifying the shape and pattern of clouds they observe on visible and infrared satellite imagery into four basic categories, which you should be sure to know (click on each one to see a brief description and an example):

Curved-band pattern

Often observed in the early stages of tropical cyclone development, this pattern is characterized by a band of dense cloudiness that begins to curve around the center of the storm. In weak hurricanes, the band coils entirely around the center of the storm. For example, Check out this infrared image that shows the curved-band pattern (opens in a new window) associated with a tropical storm with maximum sustained wind speeds of 60 miles per hour. At the time, the curved band wrapped around most of the center of the storm.

Shear pattern

Typically observed in the formative stages of a tropical cyclone or during weakening, the shear pattern is characterized by deep convective clouds moving to one side of the storm's center. For example, check out this satellite image of a sheared tropical storm (opens in a new window) with maximum sustained wind speeds of 45 miles per hour. Note that the center of low-level circulation lies to the north of the deep convection, indicative of relatively strong northerly shear between 850 mb and 200 mb. Recall that a tropical cyclone is in a weakened state when upper-level winds push deep convection away from the storm's low-level circulation.

Central Dense Overcast (CDO) Pattern

The CDO pattern describes the region of dense cirrus clouds that shrouds the core of a tropical cyclone, which is sometimes observed in stronger tropical depressions, tropical storms, and weak hurricanes. The presence of a CDO pattern sometimes indicates that intensification has stalled or is being delayed. For example, this satellite image showing a CDO pattern (opens in a new window) reveals a canopy of very cold cloud tops consolidated around the center of the storm. At this time, the storm was on the verge of being upgraded to a hurricane. For tropical depressions, tropical storms, and some weak hurricanes, the CDO appears fairly homogeneous (uniformly cold cloud-tops on infrared imagery) with no eye readily apparent.

I say "readily" because an embryonic eye may have already "secretly" formed. As a tropical cyclone intensifies, an eye typically starts to develop near the center of the tightening spiral associated with the cyclone's primary curved band. But, the CDO typically masks most of this emerging pattern from the view of conventional satellite imagery (high cloud tops shield lower-level features from detection by visible and infrared imagery). Forecasters do have tools for detecting these "secret" eyes, which we'll explore later in the lesson, but forecasters continue to use the Dvorak CDO pattern until an eye appears on conventional satellite imagery.

Eye Pattern

Once an eye is evident on conventional satellite imagery, an "eye pattern" exists. After the eye emerges, a large surrounding ring of cold convective cloud remains (which were formerly part of the CDO). For example, about 15 hours after the infrared image capturing the CDO pattern above, an eye emerged on infrared imagery (opens in a new window). The newly apparent eye appears as an oasis of warmth within the surrounding cold convective clouds as this storm was intensifying quickly into a major hurricane, with maximum sustained wind speeds of 120 miles per hour a few hours after the time of this image.

Eye patterns can characterize tropical cyclones of widely varying intensities. For example, a storm that has an eye could be a Category 1 or a Category 5 hurricane. That's a huge difference, but both would fall under the eye pattern! To further help forecasters refine their assessments based on eye patterns, they look at specific characteristics of the eye. For example, recognizing the eye of a hurricane is banded (check out this example of a banded eye (opens in a new window)) helps meteorologists recognize that a hurricane is weak (essentially a curve band had finished coiling entirely around the center of the storm to form the "banded eye"). On the other hand, highly circular eyes with few clouds surrounded by a thick symmetric ring of cold CDO cloud typically indicate a storm with major hurricane intensity (as in this enhanced infrared image of a super typhoon (opens in a new window)). Tropical forecasters look at a specially enhanced infrared satellite image called a Dvorak image to help them distinguish between various eye patterns. By using this imagery to determine the radiating temperature of the eye and compare it to the radiating temperatures of the surrounding cloud tops, they can more specifically assess the intensity of a particular hurricane. As a general rule, the larger the difference in temperatures between the eye and the surrounding cloud tops, the stronger the hurricane.

However, I should point out that hurricanes with very small eyes can present challenges to objective Dvorak analyses. When an eye is very small, the gradients in radiating temperatures within the eye and eye wall may not be depicted accurately on Dvorak imagery, lending the impression that the difference between temperatures in the eye and the surrounding cloud tops is less than it actually is. For example, check out the image slider below, showing Super Typhoon Chanthu's tiny pinhole eye on higher-resolution visible imagery compared to Dvorak imagery (advance the slider to see the Dvorak image). The Dvorak image doesn't really do justice to the characteristics of the tiny eye, which can lead to intensity estimates that are too low.

After classifying the cloud pattern and looking at satellite-derived temperatures, forecasters completing the Dvorak Technique manually would take into account other factors such as trends in the cloud pattern that indicate a weakening or intensification and assign a T Number and CI Number, which range from 0 to 8 in increments of 0.5. Officially, T Numbers and CI Numbers appear in a coded format (opens in a new window), which you may be interested in if you're into tracking tropical cyclones in real-time. But, how do these numbers translate to storm intensity? Below is a chart that links the estimated CI number with the basic patterns of clouds that I described above. Current Intensity Numbers have also been calibrated against aircraft reconnaissance of tropical cyclones in the Northwest Pacific and Atlantic Oceans. On average, the CI Numbers correspond to the specific wind speeds and central barometric pressures also shown in the graphic below.

In case you're wondering, the reason for the basin differences in central pressures at a fixed CI Number is that the overall mean sea-level pressures are lower in the Northwest Pacific (more details later in the course). So, given a central pressure and maximum sustained wind speed associated with an Atlantic tropical cyclone, the central pressure of storm in the Northwest Pacific must essentially be lower for it to generate the same wind speed. Remember, it's the pressure gradient that largely determines wind speed, which is why small tropical cyclones can generate stronger winds than a larger cyclone with the same minimum central pressure. It's important to keep in mind that the Dvorak intensity estimates in the graphic above are merely averages.

As you track tropical cyclones in real-time, you'll regularly see references to T Numbers and CI Numbers in discussions from NHC and JTWC, and a number of sites online provide Dvorak analysis data (links are in the Explore Further section below, if you're interested). With what you now know about the Dvorak Technique, you should be able to interpret those references and understand what they suggest about a tropical cyclone's current status. The Dvorak Technique, however, is far from the only way that satellites are used in tropical cyclone forecasting. We'll explore another intriguing use of satellite data on the next page with a discussion of "Cloud-Drift Winds."

Read...

As you've already seen, remote sensing from satellites can be used to estimate the intensity of a tropical cyclone via the Dvorak Technique. Indeed, several other satellite-based remote sensors help forecasters observe various aspects of a tropical cyclone's structure and intensity as well. We'll cover several more of these sensors as we continue through the lesson. In this section, I'm going to focus on a remote-sensing technique that has broader applications than just tropical cyclone analysis.

The same geostationary satellites used to execute the Dvorak Technique can also be used to remotely retrieve tropospheric wind information by calculating what are formally called atmospheric motion vectors (AMVs). You'll also sometimes hear AMVs referred to as cloud-drift winds (CDWs) or cloud-tracked winds. On the Web, you may encounter any of these phrases, so just realize that they refer to the same thing. For simplicity, however, I'm going to stick with the term "cloud-drift winds" (CDWs) because it intuitively describes how this product is created. In a nutshell, this technique retrieves estimates of wind speeds and directions at various altitudes by tracking the movement of clouds on satellite loops. The process sounds pretty simple, but it can actually be quite challenging.

Before we really explore cloud-drift winds, I should point out that they rarely get a mention in any NHC discussions. So, what's the role of CDWs in tropical weather forecasting? Well, as you know, there's a serious dearth of routine radiosonde observations over the oceans, where the lack of data introduces errors into numerical simulations of the atmosphere. Thus, the capability of getting a proxy for winds by measuring how fast clouds drift over open seas is invaluable. With numerical weather prediction in mind, it should come as no surprise to you that CDWs are assimilated into computer models.

While cloud-drift winds often play somewhat of a "behind-the-scenes" role in weather forecasting, we can still use available CDW data to infer important things about tropical weather. For example, check out the CDW data in the image below, which shows wind barbs annotated on infrared satellite imagery over the Southeast Indian Ocean. The various colors are described by the key in the upper-right corner of the image (green wind barbs are in the layer between 800 mb and 950mb; yellow = 600 - 799 mb; blue = 400 - 599 mb). For example, look off the west coast of Australia and note the closed, cyclonic circulation. Remember that this image is from the Southern Hemisphere, so "cyclonic" refers to a clockwise circulation. Using infrared imagery alone, the system would only appear as an innocuous blob of relatively low clouds that are hard to pick out, but the yellow barbs derived from cloud-drift winds showed that a closed circulation existed between 799 mb and 600 mb. These CDW observations helped forecasters not be fooled by the unremarkable blob of low clouds and realize that there was actually a tropical depression present.

Credit: CIMSS

Now that you have a little background on CDWs and their applications, let's look at the technique of retrieving winds from various types of satellite imagery (they're not all based on IR imagery). As its name suggests, cloud-drift winds are derived from a sequence of satellite images. In the simplest sense, you could spot a cloud and watch it move with time; but, as you can imagine, in reality, it's not that straightforward. As an example, I'll describe the technique for retrieving winds in the lower to middle troposphere from infrared satellite data. First, the technique requires three successive images. Next, "target clouds" are selected according to brightness gradients (large gradients in brightness, for example, typically mark cloud edges). The pressure altitudes of the cloud targets are then estimated from the intensity of infrared radiation detected by the satellite.

Credit: CIMSS

An important caveat here is that the brightness gradients associated with candidate targets must remain relatively consistent in time, which means that not all clouds provide viable targets. To get a feel for what a sample of suitable cloud targets might look like, check out the dots on the infrared satellite image on the right. Indeed, multilayered clouds (decks of low, middle, and/or high clouds lying over the same geographical area) are eliminated as potential targets because trying to assign altitudes to multilayered clouds poses nightmarish challenges. So, ultimately, we can't accurately determine CDWs everywhere using infrared imagery because of these challenges, and the fact that some areas have no cloud cover at all.

Fortunately, we're not limited to infrared imagery for CDW observations. As you already know, loops of water-vapor images can be used to assess winds in the upper troposphere (forecasters infer these winds even without a formal CDW technique). Indeed, in areas without high clouds to track the upper-level winds, water-vapor imagery becomes indispensable because it allows us to follow "vapor targets (opens in a new window)" (like cloud targets on infrared imagery) in time. Following "vapor targets" allows us to deduce the speed and direction of upper-level winds over tropical seas quantitatively (as opposed to the qualitative approach that forecasters often use when looking at water vapor loops).

The schemes used to generate middle- and upper-tropospheric winds from water-vapor loops are similar to the technique used to generate lower-altitude winds from infrared-satellite loops. For starters, three successive water-vapor images are required, and horizontal gradients in water-vapor (or high cloud tops) that remain coherent in time serve as potential vapor targets. Even though water vapor imagery provides more target options, many of the vapor targets end up being removed because of various quality control issues. After applying the same principles involved in retrieving CDWs from infrared imagery, out pops water-vapor images with middle- to upper-tropospheric winds -- just like the one below showing CDWs over parts of North America, Central America, and South America (and surrounding oceans).

Credit: CIMSS

The different colors of the wind barbs correspond to their layers as described by the key at the top right of the image. Note however, that color schemes for plotting various layers of cloud-drift winds can vary from Web site to Web site, so it's wise to not get locked in on one particular color scheme. At the time of this image, a tropical depression had just formed off the coast of Central America, but a corridor of relatively fast north-northeasterly flow in the upper troposphere over the storm (note the wind barbs in the 250-100 mb layer indicating winds as fast as 40-50 knots or more near the storm), with a few in the 350-251 mb layer, too) was helping to create strong vertical wind shear over the storm. Persistent vertical shear over the storm helped prevent it from becoming anything more than a minimal tropical storm during its lifetime.

Cloud-drift winds aren't limited to just traditional infrared and water-vapor imagery, though. CDW data can also be produced from visible imagery, though it has an inherent limitation of only being available during local daytime when there's enough reflected visible sunlight to produce a visible image. Shortwave infrared imagery is often used to supplement visible imagery so that there's no data void at night. If you're interested in learning more about CDWs from visible imagery, check out the Explore Further section below.

Finally, I should point out that CDWs have long been used to assess large-scale wind patterns, but they often aren't the best tool for detecting the details of wind patterns around tropical cyclones. Remember that tropical cyclones are rather small features in the scheme of things, and available CDW targets are often too few in number or too far apart to capture the finer details. However, improvements in satellite technology, including the introduction of very high-resolution sector scans focused on important weather features, allows for better tracking of wind fields around tropical cyclones. These high-resolution satellite scans with their more frequent updates make it possible to track a higher number of cloud targets (potentially thousands within the region of a tropical cyclone), allowing for a higher-level of detail in CDWs.

To see what I mean, check out the image of these "High-Resolution CDWs" below, showing CDWs in the vicinity of Hurricane Melissa (2025) as it was beginning a period of rapid intensification. The blue and cyan wind barbs represent winds above 250 mb, and they show a clear pattern of upper-level divergence over the storm (note how the wind barbs blow outward from the center of the storm). This upper-level divergence, of course, would help air columns near the center of the storm lose weight and lower surface pressures.

Credit: CIMSS

You might have noticed in the image above that most of the wind barbs were located in the upper troposphere, which isn't surprising, given the plethora of high-topped clouds in and around a hurricane. However, in some storms that don't have well-developed central dense overcast regions or expansive high-level cirrus flowing outward at the top of the storm, high-resolution CDWs can track lower level winds around the storm. But, in Melissa's case above, CDWs below 500 mb were limited to the bottom left corner of the image (purple and red wind barbs blowing from the west-southwest -- in toward the storm).

If you want to learn a bit more about how cloud-drift winds are produced, or want to view real-time CDW data, you may be interested in the resources in the Explore Further section below. In the final analysis, assessing CDWs at a variety of wavelengths (corresponding to those that create water-vapor and infrared imagery, as well as shortwave infrared and visible imagery if available) gives forecasters a more complete picture of winds throughout the depth of the troposphere. Such a "multi-channel" approach was essential for assigning heights to potential cloud targets. But, the utility of the multi-channel approach in satellite remote sensing has broader applications, which we're about to investigate.

Read...

Throughout your studies, we've looked at several different types of satellite imagery, each using a different wavelength of electromagnetic radiation to produce an image. Notably, each type of "conventional" satellite imagery (visible versus infrared, for example) uses a single wavelength (or "channel") to produce the image. But, as we already know, using different types of imagery (different "channels" from the satellite's imager) helps forecasters gain different information (about upper-level winds versus lower-level winds in the case of cloud-drift winds, for example). It turns out that combining multiple channels on the same image can sometimes help forecasters better identify certain features and cloud characteristics. Let's explore these "multi-channel," or more formally, multispectral images, which use multiple wavelengths of the electromagnetic spectrum.

Polar-orbiting satellites have long played a pivotal role in remote sensing of tropical weather systems using a multispectral approach. You may recall that polar orbiters fly at much lower altitudes (opens in a new window) than geostationary satellites and are "sun synchronous" (meaning that they ascend or descend over a given point on the Earth's surface at approximately the same time each day). Multiple fleets of polar orbiting satellites currently circle the Earth (more in the Explore Further section below). Instruments aboard these satellites collect data at multiple wavelengths ("channels") across the visibile and infrared portions of the electromagnetic spectrum, which allows us to collect information about day and nighttime cloud cover, snow and ice coverage, sea-surface temperatures, and land-water boundaries. However, with improvements in geostationary satellites, including better resolution, they're also a common source of multispectral satellite composites. By the way, if you're interested in exploring the topic of satellite resolution in more detail, check out the Explore Further section below.

One product that has long been common in tropical forecasting is a three-channel color composite like the one below captured by a polar orbiting satellite, showing Category 5 Hurricane Katrina at 2011Z on August 28, 2005. The yellow shading in Katrina's eye really stands out, doesn't it?

That yellowish shading corresponds to low-topped, relatively warm clouds within Katrina's eye (remember that the eye of a hurricane often contains low clouds). Meanwhile the thick, tall convective clouds with cold tops surrounding the eye appear bright-white on this three-channel color composite, and high, thin cirrus clouds appear blue/white.

How does it work?

How are useful color composites like this one created? The process can vary depending on the type of multispectral image, but most commonly, three individual channels are combined, with a filter being applied to each. To illustrate, let's walk through the scheme used to make the image above. It's not really all that complex. First, we start with a standard grayscale visible image, near (or "shortwave") infrared, and infrared images (check out the top row of satellite images in the graphic below). Next, we apply a red filter to the visible image, a green filter to the near-infrared image, and a blue filter to the infrared image, and we get strange looking satellite images like the ones in the second row of the graphic below. But, if we combine those "false-color" images together, we get a three-channel color composite!

Credit: NOAA / David Babb @ Penn State is licensed under CC BY-NC 4.0 (opens in a new window) (opens in a new window)

Breaking down this three-channel color composite helps us to understand why high, thin clouds appear in blue on the final product like the image of Hurricane Katrina -- they're brightest on the infrared channel (which had blue hues added to it). Meanwhile, tall, thick convective clouds that show up bright white on the final product are bright on the individual images from all three channels, and low clouds appear yellow because they're brightest on the visible (red) and near-infrared (green) images. The combination of green and red provides the yellow shading (if you're curious about why yellow results, you may want to read about additive color models (opens in a new window)).

This final color scheme (yellow for low clouds, white for tall, thick convective clouds, and blue for thinner cirrus) isn't universal, however. For another example of a three-channel color composite from a geostationary satellite, check out the image below. This particular image shows Tropical Storm Arthur near the Texas Coast on June 17, 2026. This composite was created using two different visible channels and one infrared channel. Using these channels, this type of composite (formally called a "Day Cloud Phase RGB") helps to discern between low clouds composed of liquid water (in blue), clouds where ice crystals are starting to form (in green), tall, convective clouds (yellow), and thinner cirrus clouds (reddish-orange). Given the presence of thick convective clouds and cirrus in the large convective cluster over the Gulf, the clouds take on a a reddish-yellowish appearance.

Credit: College of DuPage

At this time, Arthur was a highly sheared system, with all of the deep convection displaced well to the east of the low-level center (the surface center of low pressure is marked with an "L."). The fact that lower clouds comprised of liquid drops appear in blue on this type of image helps forecasters quickly recognize the displacement between the low-level center and the deep convective clouds (appearing reddish yellow) over the Gulf. At the time, Arthur was obviously not a "healthy" storm.

The multispectral approach ultimately made it much easier to diagnose cloud types and discern the low-level circulation from the rest of the storm than any single visible image or infrared image. The image slider below helps to illustrate this. The first image is a conventional visible image of Arthur at the same time as the multispectral image above. If you advance the slider to the second image, you'll see the corresponding enhanced infrared image, on which it's very difficult to pick out circulation in the low clouds. Finally, advancing the slider to the final image shows the multispectral image above for comparison. The striking color contrasts help forecasters get a quick read on the sheared structure of the storm.

I should point out that many types of multispectral images exist, beyond three-channel color composites like the ones I've already described. Indeed, another example is so-called "sandwich" imagery, which combines one visible channel and one infrared channel to provide the high-resolution details of visible imagery, along with color enhancements to accentuate cold cloud tops (from infrared imagery). The result can be a visually spectacular image where you can see the bubbly texture of cumulonimbus clouds along with infrared color enhancement (see Arthur's corresponding sandwich image (opens in a new window), for example). So, I've just scratched the surface here (we haven't covered all types of multispectral images), but hopefully you can see how the multispectral approach can make it easier to pick out specific details of tropical cyclone structure and discern details about cloud type and altitude, even though color conventions may vary.

Specifically, when a tropical cyclone is highly sheared like Arthur was, the color scheme of three-channel color composites can really expose the structure of the storm. For another striking example, check out this loop of three-channel color composite images of a weak tropical depression (opens in a new window) in the Atlantic. Not long after the storm was classified as a depression, the deep convective clouds (bright white) got displaced to the northwest thanks to strong southeasterly wind shear. The yellow swirl of clouds left behind clearly marks the storm's low-level circulation. The completely exposed low-level circulation signaled that intensification wasn't in the cards for this storm (in fact, it never did become a tropical storm and dissipated entirely a couple of days later).

There's no doubt that this multispectral approach to satellite imagery can produce some striking and very insightful images, and in case you're wondering, the false-color approach of multispectral images has a number of other applications. The Hubble and James Webb Space Telescopes (opens in a new window) employ a similar approach, as do polar-orbiting satellites that study features on the Earth's surface. But, for analyzing tropical cyclones, the uses of multiple wavelengths of electromagnetic radiation don't stop with what we've covered here. It turns out that other remote sensing equipment aboard polar-orbiting satellites can detect things like rainfall rates, temperatures, and wind speeds by employing different wavelengths of radiation. We'll begin our investigation of those topics in the next section.

Read...

Our studies of remote sensing from satellites so far have mostly focused on techniques and products that are based on conventional satellite imagery. Even multi-spectral images are merely created from various wavelengths used to create visible and infrared images. Now, however, we're going to transition into some more sophisticated applications of remote sensing from satellites. In this section, I'm going to focus on satellite-based detection of precipitation structures and rates. Satellites play a crucial role in this area because tropical cyclones spend so much time outside of the range of land-based radar networks. First, we'll investigate imagery created from satellite detection of microwave radiation between 85 GHz and 91 GHz.

85-91-GHz Imagery

One of the characteristics that you've learned about a tropical cyclone's eye is that it is generally rain free, but it is not often completely cloud free. Either some low clouds exist in the eye and/or high clouds obscure the presence of the eye altogether on conventional satellite imagery. For example, check out the enhanced infrared satellite image at 2250Z on July 2, 2026 (below), which shows Typhoon Bavi. At the time, Bavi was in the midst of rapid intensification and had maximum sustained wind speeds of 105 miles per hour (a Category 2 storm on the Saffir-Simpson Wind Scale). Given that data, you might suspect that Bavi would display a well-defined eye on conventional satellite imagery. But, alas, high clouds obscured Bavi's eye, and it would be tough to get a fix on the storm's center under these circumstances.

Credit: Naval Research Laboratory

Even though enhanced IR imagery didn't provide a good look at Bavi's core structure, thanks to passive microwave imagery, forecasters could still see that Bavi had an eye. How? Microwave imagers aboard polar-orbiting satellites detect emitted microwave radiation at frequencies from 85-91 GHz, and at the wavelengths used to create these images, we can "see" right through high-altitude cirrus clouds into the eye. Therefore, detecting the high-level structure of the core of tropical cyclones is a primary use of 85-91-GHz imagery. The image below happened to utilize 89-GHz microwave radiation and is superimposed on conventional infrared imagery in the areas outside the viewing swath of the polar-orbiting satellite (the pass didn't capture the entire storm). The 89-GHz image, which was from less than 30 minutes after the enhanced infrared image shown above, clearly revealed that Bavi did have a well-defined eye.

Credit: Naval Research Laboratory

So, how should we interpret this image? Why is Bavi's eye evident on this image, but not the enhanced infrared image? After all, both images are plotting the same variable, called "brightness temperature," which is the temperature of a hypothetical object that absorbs all radiation that strikes it (brightness temperature is also sometimes referred to as "equivalent blackbody temperature"). But, because the two images are utilizing different wavelengths (frequencies) of radiation, they're showing us different things. The 89-GHz image doesn't really show us high, cold cloud tops like conventional infrared imagery does. Focusing on the spiraling pattern of low brightness temperatures around Bavi's center (red, green, and yellow), it stands to reason that not much 89-GHz radiation was reaching the satellite at this time. The short video below will help you understand why.

85-91-GHz Imagery (2:51)

The bottom line from the video is that when we see very low brightness temperatures on 85-91-GHz imagery, we're really seeing the signature of deep convection (characterized by the areas where emissions of 85-91-GHz radiation have been weakened the most by large ice particles like hail and graupel high up in convective clouds). For practical purposes, this trait of 85-91-GHz imagery:

• allows forecasters to see the eye of a hurricane that's shrouded by high clouds
• allows forecasters to assess the structure of hurricanes over remote seas by revealing the patterns of deep, moist convection in the storm's eye wall and outer rain bands

For the record, a few "twists" on 85-91-GHz images actually exist. Scientists have made some tweaks to the basic product in order to make it more useful. If you're interested in reading about these "twists," check out the upcoming Explore Further page.

One of the major limitations of 85-91-GHz imagery is that the satellites housing the sensors that create the imagery do not provide constant, universal coverage (as hinted at by the fact that the 89-GHz image above only includes a partial scan of Bavi). In fact, one of the several satellites equipped with a microwave sensor passes over a tropical cyclone, on average, every 2-3 hours (though time lags can be shorter or longer). So, there can be long gaps between data for any tropical cyclone. Researchers at the University of Wisconsin devised a creative technique, called MIMIC (Morphed Integrated Microwave Imagery at CIMSS), to fill in the time gaps with morphed 85-91-GHz images, and it can be very helpful for assessing changes to the structure of a tropical cyclone's core structure (and thus, its intensity). For example, check out this MIMIC loop of Hurricane Helene (opens in a new window) as it made landfall in Florida in September, 2024. The loop really shows the breakdown of Helene's eye wall (the partial ring of yellows and oranges) after landfall. If you really enjoy following tropical cyclones in real-time, I highly recommend keeping an eye on the recent MIMIC loops posted on the CIMSS site (opens in a new window).

36-37-GHz Imagery

While 85-91-GHz imagery is useful for identifying areas of deep convection within a tropical cyclone, it's not particularly useful at looking at the low-altitude structure of a storm because of the impacts that the large ice particles above the freezing level have on upwelling 85-91-GHz radiation. To get a better view of the low-level structure of a tropical cyclone, forecasters turn to imagery based on 36-37-GHz radiation, which works much like 85-91-GHz imagery, with one key difference. The 36-37-GHz radiation that upwells from the top of the "rain layer" is not scattered and absorbed by large ice particles or tiny ice crystals above the freezing level (here's a visual schematic outlining the process (opens in a new window)).

As a result, brightness temperatures are higher because the passive microwave sensor aboard the satellite detects a relatively large portion of the upwelling 36-37-GHz radiation from its source -- raindrops below the freezing level. And, because the majority of the radiation from lower altitudes reaches the satellite, 36-37-GHz imagery gives forecasters a better sense of the overall low-level structure of tropical cyclones. For example, we can see the low-level structure of Bavi from this corresponding 37-GHz image (opens in a new window). You might have noticed that the signature of Bavi's eye was smaller on the 37-GHz image than it was on the 89-GHz image shown earlier. The ability of 36-37-GHz imagery to detect low-level structure also makes it a better choice than 85-91-GHz imagery for pinpointing a tropical cyclone's center. For a more in-depth explanation of this advantage of 36-37-GHz imagery, check out upcoming Explore Further page.

Before moving on, however, I want to point out that forecasters can use 36-37-GHz imagery in tandem with 85-91-GHz imagery to assess the vertical structure of tropical cyclones. Since 36-37-GHz imagery gives a better look at the low-level structure, and 85-91-GHz imagery gives a better look at the high-level structure, forecasters can compare the locations of the low-altitude center and high-altitude center to see if the center of the storm tilts with increasing height. If the center notably tilts with height, that's often a sign that the storm isn't healthy and may be hindered by strong vertical wind shear.

Quantitative Precipitation Estimates

While 85-91-GHz and 36-37-GHz imagery do a good job of showing us the overall precipitation structure of a tropical cyclone (by highlighting deep convection and the details of the low-level rain layer, respectively), they don't quantitatively indicate rainfall rates or totals. Remote sensing from satellites can help with that, too, as suggested by the rainfall estimates (below) from Hurricane Harvey as it approached and made landfall in Texas in late August, 2017.

Credit: NASA

How can microwave sensors be used to attain quantitative precipitation rates and totals? The key lies in a multispectral approach. Imagery generated using a single frequency between 85-91-GHz or 36-37-GHz can't display precipitation rates, but imagery developed from multiple frequencies can. The data in the image come from NASA's Integrated Multi-Satellite Retrievals for GPM (IMERG) product. The "GPM" in the name stands for the Global Precipitation Measurement mission, which consists of several satellites with microwave sensors. The workhorse for providing quantitative precipitation data, however, is the core GPM satellite itself, which provides nearly global coverage (though not simultaneously since it's a polar-orbiting satellite) and houses two key instruments--the GPM Microwave Imager (GMI) and a Dual-frequency Precipitation Radar (DPR). If you're interested in learning more details about these key instruments aboard the GPM satellite, feel free to read more (DPR overview (opens in a new window); GMI overview (opens in a new window)), but I'll summarize the main points.

GMI is a passive microwave sensor, carefully measuring weak microwave energy naturally emitted by the Earth and the atmosphere and using it to infer rainfall rates. What makes the GMI different from 85-91-GHz imagery and 36-37-GHz imagery (which do not quantitatively estimate precipitation) is its use of multiple frequencies. Meanwhile, DPR is an active microwave sensor, which transmits pulses of microwave radiation and waits for return signals, much like a ground-based radar. DPR also uses multiple frequencies (within the "Ka-Band" at 35.5 GHz and the "Ku-Band" at 13.6 GHz), and is capable of depicting the surface rain rate as well as the three-dimensional precipitation structure of storms. DPR also provides higher-resolution data than GMI; however, the tradeoff is that its scanning swaths are narrower, so DPR is more likely to only partially scan any individual storm on a single pass, as illustrated by the schematic below.

Credit: NASA

So, GMI offers coarser information about surface precipitation over a larger area, while DPR offers more detailed, three-dimensional information over a smaller area. DPR is also more sensitive to areas of light rain and snow, and its sensitivity allows it to help calibrate the passive microwave data that go into IMERG precipitation analyses (which include passive microwave data and even rain gauge data, if available). Ultimately, the passive microwave imagery that go into IMERG precipitation estimates provide perhaps the best look at where it's precipitating (and how hard) across much of the globe where ground-based radar imagery is lacking. The 7-day loop of IMERG estimates below gives a spectacular example. Can you pick out the signatures of precipitation from mid-latitude cyclones tracking across the Southern Hemisphere and the typhoon approaching China?

Global 7-Day Precipitation Rate (0:13)

Now that you're familiar with satellite-based qualitative and quantitative looks at precipitation within tropical cyclones, I recommend checking your knowledge in the Quiz Yourself section below. You also might be wondering where you can access all of this data. For more on data resources and some of the products available, check out the Explore Further page that follows. Otherwise, we'll stick with the theme of remote sensing using microwaves and explore microwave sounders (a sounder provides a vertical profile of a meteorological variable) used in tropical forecasting.

Read on.

Read...

While we've already seen how satellite data can help forecasters estimate the intensity of tropical cyclones (via the Dvorak Technique, for example), we're about to see that other remote sensing tools called "microwave sounders" can also provide intensity estimates. But, the functionality of microwave sounders extends far beyond just observing tropical cyclones. These are passive microwave sensors that retrieve atmospheric vertical temperature and moisture profiles throughout the atmosphere, and when it comes to the initialization data that feeds global weather models, the largest fraction actually comes from microwave sounders. So, microwave sounders are an indispensable tool for weather analysis and forecasting.

Besides temperature and moisture profiles, many other applications of data from microwave sounders exist, such as deriving rain rate, sea ice concentration, and snow cover, but our focus here will be on temperature profiles because of their connection to tropical cyclone intensity. Here again, the ability to collect multispectral data is key to making the most out of these instruments, which use multiple channels that are "tuned" to specific atmospheric layers. Having the capability to estimate temperatures in specific layers of the atmosphere is pivotal for getting a handle on the high-altitude warming above the core of a developing tropical cyclone.

For example, check out the cross-section of temperature anomalies in a slice through the center of Hurricane Helene on September 25, 2024, below. The warming in the eye can be correlated to a reasonable estimate for minimum surface pressure (warming decreases mean column density, which results in a decrease in column weight, which, in turn, is closely related to surface pressure). It sounds simple, but deriving these temperatures is actually fairly complicated (more details coming shortly).

Credit: NASA

The deepest orange and red shadings represent the largest positive temperature anomalies (the warmest air compared to the storm environment), which appear to be in the middle and upper troposphere thanks to compressional warming occurring with sinking air in the eye. This particular cross section captured the maximum warm anomalies aloft in the storm because this slice included Helene's eye. In other parts of the storm, the pattern of temperature anomalies can look quite different. To get an idea of how they can change in different parts of a hurricane, check out the interactive tool below.

In the image on the left, click and drag the white bar to view various cross sections throughout the storm (on the right). Keep in mind that all of these cross sections were created at the same time in an actual hurricane; they simply represent different slices through the storm. As you drag the white bar closer to the eye, the broad warm anomalies (from the release of latent heat in convective clouds) transition to dramatic, focused, warming over the core (in deep red). The magnitude of the compressional warming high above the core and the low central pressure at the ocean surface (and, thus, the powerful surface winds around the periphery of the eye) are connected, and researchers have developed various statistical techniques for estimating minimum central pressure and maximum sustained wind speeds from this connection.

You might have also noticed that in slices closer to the center of the storm, a notable cool anomaly appeared in the lower troposphere on the cross section. This signal actually becomes most prominent as two symmetric cool anomalies on either side of the eye, corresponding to the stormy eye wall. If you look back at the cross-section of Hurricane Helene, you'll notice similar low-level cool anomalies, though they're more subtle. Without mincing words, you should disregard these large cool anomalies because they are phony. Indeed, heavy rain in the eye wall and spiral-band thunderstorms grossly attenuates microwaves from microwave sounders (raindrops scatter and absorb microwaves), causing unrealistically weak upwelling that is accidentally interpreted as a large cool anomaly. So don't believe it! The attenuation of microwaves by heavy rain is one of the limitations of these kinds of remote sensors. I should add that another limitation of microwave sounders is that they're housed aboard polar-orbiting satellites, much like the other passive microwave sensors we've covered. Therefore, they don't offer continuous, universal coverage (i.e. they may miss storms sometimes and hours may go by before a storm is successfully sampled by a satellite pass).

Now that you know about how microwave sounders can give forecasters a look at warm core of a tropical cyclone, let's dig a little deeper.

How does it work?

As I mentioned before, each channel on a microwave sounder is "tuned" to measure brightness temperatures in specific atmospheric layers. Recall that brightness temperature (also known as "equivalent black-body temperature") is the temperature of a hypothetical object that absorbs all radiation that strikes it. Having the capability to estimate brightness temperatures in specific layers of the atmosphere is the key for assessing the high-altitude warming above the core of a tropical cyclone. But, how do these instruments assign brightness temperatures to specific atmospheric layers? We've encountered a similar problem before, when we discussed the complicated methods of assigning altitudes to water vapor targets in order to derive cloud-drift winds. That problem was particularly complex because vertical profiles of water vapor vary in time and space across the globe.

Microwave sounders, however, remotely sense microwave radiation emitted by molecular oxygen. That's a big deal because unlike water vapor, the decrease in the concentrations of molecular oxygen with increasing altitude is roughly the same at any place and at any time. Moreover, the presence of clouds does not meaningfully interfere with microwave emissions from molecular oxygen reaching the satellite. The bottom line here is that we know how oxygen is distributed in the atmosphere. And, this knowledge is the basis for how we can assign specific altitudes to brightness temperatures measured at microwave frequencies with these instruments.

Between roughly 50 GHz and 60 GHz (the microwave band for the channels that create temperature profiles), molecular oxygen absorbs strongly at some frequencies, but not as strongly at other frequencies. For example, let's look at the channels corresponding to 50.3 GHz and 54.9 GHz. Molecular oxygen weakly absorbs microwave radiation at a frequency of 50.3 GHz, so it virtually passes through the atmosphere without much absorption at this frequency (see graph on the left below). As a result, the greatest contribution to upwelling microwave radiation at 50.3 GHz that reaches the satellite comes from the earth's surface (see graph on the right below).

Credit: David Babb @ Penn State is licensed under CC BY-NC 4.0 (opens in a new window)

Meanwhile, at a frequency of 54.9 GHz, molecular oxygen much more strongly absorbs microwave radiation. This means that microwave emissions from the ground at 54.9 GHz do not reach the satellite because this radiation is absorbed by molecular oxygen higher up. Nor do microwave emissions (at 54.9 GHz) from oxygen in the low-to-middle troposphere ever reach the satellite. In the final analysis, microwave emissions from molecular oxygen at approximately 200 mb (about 12 kilometers) provide the greatest contribution to upwelling radiation that reaches the satellite at this frequency.

The primary microwave sounders used for tropical cyclone monitoring are the Advanced Microwave Sounding Unit (AMSU) and the Advanced Technology Microwave Sounder (ATMS), which both have a dozen or more channels dedicated to temperature profiling (and other channels dedicated to water and ice detection), so it's not difficult to imagine that they can generate a temperature profile through virtually the entire atmosphere. If you're interested in knowing the specific level of maximum contribution to upwelling microwave radiation for each ATMS channel (including other channels not used for temperature profiles), check out this graph of weighting functions (opens in a new window). In simplest terms, you can think of a weighting function as the level of maximum contribution to upwelling microwave radiation that reaches the satellite at the given channel's frequency.

In addition to viewing cross sections of tropical cyclones, we can also view data from individual channels to identify temperature anomalies near single pressure altitudes. Historically, the maximum warming over the eye of a hurricane was thought to occur near 200 mb, and it does appear there often on microwave sounder images; however, research suggests that the maximum warm anomaly can meander between the middle and upper troposphere at various times during the storm's life cycle. Therefore, forecasters commonly monitor four channels that allow them to evaluate temperature in the upper half of the troposphere and lower stratosphere, though the specific channel numbers are slightly different on each instrument, as outlined in the table below.

So, these four channels (AMSU channels 5-8 and ATMS channels 6-9), give forecasters a "top down" or plan view of the temperature anomalies at various levels within a tropical cyclone. For example, the image below shows the warm anomalies in a hurricane from AMSU Channels 5 - 8. The warm core really stands out, especially on channels 6 and 7 (350 mb and 200 mb, respectively), marked by yellows, oranges, and reds.

Credit: CIMSS

Ultimately, data from these microwave sounders gets incorporated (along with other satellite data) into statistical models for estimating tropical cyclone intensity. These approaches are imperfect, but on average, they have smaller errors than automated Dvorak-based methods alone. If you're looking for where you can access these satellite-based intensity estimates, as well as AMSU/ATMS data, check out the Explore Further section below after you've tested your basic knowledge from this section in the Quiz Yourself below. Up next, we have one more stop on our tour of remote sensing from satellites -- remote sensing of surface winds from space with satellite-based radars.

Read...

One of the reasons that remote sensing from satellites is so important to tropical cyclone observation and forecasting is that tropical cyclones spend so much time away from land-based observational networks (such as radar networks, among others). But, did you know that some polar-orbiting satellites also have radars mounted on them, which provide critical data to tropical forecasters? The primary use of these radars is actually in detecting the wind field in tropical cyclones, but like all tools, they have some limitations. So, let's get right into the first of these tools -- scatterometers.

Scatterometry

Scatterometers are unique because they have the ability to remotely measure surface wind speed and direction over water. For the record, a scatterometer is a high-frequency radar ("high" compared to the standard network of ground-based Doppler radars, which are "S-Band radars (opens in a new window)"). So, a scatterometer is an active remote sensor--it emits pulses of microwave radiation and measures the radiation that backscatters to the unit, similar to standard weather radar.

In a nutshell, scatterometers transmit pulses of microwaves with relatively short wavelengths (relatively high frequencies) and measure the backscatter from the wind-roughened ocean. The faster the winds are, the rougher the ocean surface, and the more radiation that backscatters to the scatterometer. In turn, meteorologists correlate backscattered microwave energy to wind speed and direction. As you'd expect, actually determining wind speeds and directions is a complex, imperfect process, but we'll explore those issues in a bit.

A number of scatterometers have been mounted on polar-orbiting satellites and have made key contributions to tropical forecasting since the 1990s. From a forecasting perspective, scatterometry gives forecasters the ability to detect tropical cyclones in their earliest stages of development. Early detection is important, of course, because it affords the general public and maritime interests greater lead time to prepare for any eventual threat. Scatterometry can detect centers of wind circulations that have the potential to develop into tropical cyclones many hours in advance of their attaining formal status as a tropical depression. In fact, when scatterometers were a relatively new tool around the turn of the century, researchers determined that they helped forecasters identify potential tropical cyclones an average of 43 hours before the National Hurricane Center formally classified the systems as tropical depressions. Identifying potential tropical cyclones from scatterometer data involves the detection of a developing cyclonic circulation of surface winds. So, how do forecasters interpret scatterometry data for this purpose?

Interpreting Scatterometry Data

Let's start with examining what scatterometry data actually looks like in practice. Once the data have been processed by computers, the output looks something like the image below. Notice a few important things. First, there's no scatterometry data over land (remember scatterometers measure backscattered radiation from ocean waves, so that makes sense). Secondly, notable swaths of missing data exist across the western Gulf and across much of the Caribbean into the Atlantic Ocean off the East Coast. Like the other sensors mounted aboard polar orbiting satellites, coverage gaps exist in the data (the satellite's "view" on any one pass is only so wide, so some areas naturally get missed). Finally, the surface wind barbs on this particular image show a clear cyclonic swirl, which corresponded with Hurricane Milton (opens in a new window) in 2024.

Credit: NESDIS Center for Satellite Application and Research

Note that most of the wind barbs near Milton's center are black and show very high speeds, which doesn't make sense with the color code used on the graphic (black represents speeds five knots or less). Furthermore, the circulation is hardly neat and tidy. It turns out that these black wind barbs have a special meaning -- they indicate that the data are unreliable. This "black flag" convention isn't universal, however. Some Web sites use other symbols (such as dots at the end of a wind barb) to indicate unreliable data. Scatterometers have trouble collecting good data in areas of heavy rain because raindrops severely attenuate microwave radiation, which weakens the signal received by the satellite. In addition, heavy rain splashing down on the ocean surface alters the small-scale structure of the surface ocean waves, which changes the nature of the backscattering to the satellite. Ignoring the unreliable "rain-contaminated" data on this particular image, the reliable observations suggest that Milton's maximum surface wind speed was only a little more than 50 knots, which was an underestimate since Milton was actually a Category 4 hurricane at the time.

This image provides a good example of why scatterometry data is primarily used to identify cyclonic circulations in embryonic tropical cyclones. Because heavy rain can prevent scatterometers from accurately discerning wind direction and speed, they typically don't provide useful data near the center of stronger tropical cyclones (because that's where lots of heavy rain falls in eye wall thunderstorms). So, scatterometry is generally not a good way to assess the intensity of a strong tropical cyclone. In weaker tropical systems, fewer organized areas of heavy rain exist, which yields a more useful data set.

You should also note that scatterometry has applications beyond the tropics, such as identifying sea ice in polar regions. Glacial snow and ice very effectively backscatter microwaves to the scatterometer (more effectively than even wind-roughened oceans), which allows scientists to identify boundaries of sea ice from their strong return echoes.

Characteristics and Limitations

Rain contamination isn't the only limitation of scatterometry data, however. Scatterometers can differ in their frequency of radiation emitted, resolution, sensitivity to rain contamination, scanning width, etc. While each scatterometer has its own unique set of characteristics and limitations, I'm going to highlight the most significant ones. First, while scatterometers use higher frequencies of microwaves than land-based Doppler radars, they don't all use the same frequencies. Typically, they are either K_u-Band (opens in a new window) radars (frequencies between 12 and 18 GHz) or C-Band (opens in a new window) radars (frequencies between 4 and 8 GHz). Employing these different frequencies has some tradeoffs, which I've summarized in the table below.

Note that each type has its advantages and disadvantages. I should also note that while C-Band scatterometers are a bit less sensitive to attenuation in areas of heavy rain than K_u-Band scatterometers, rain contamination isn't eliminated entirely. Furthermore, the ASCAT scatterometer series (maintained by the European Space Agency) also has a documented low bias at moderate to high wind speeds (greater than about 20 meters per second, or 39 knots).

Each scatterometer passes over a region twice per day (one "ascending" pass and one "descending" pass), but scatterometers can differ greatly in how much they "see" in a single pass. To gain a better understanding of these differences in coverage for a single pass, check out the image below, which shows a coverage comparison between ascending passes from an ASCAT series scatterometer (left) and an OSCAT series scatterometer (right). The superior spatial coverage of OSCAT is obvious, and note that the coverage gaps of both scatterometers are maximized at the equator, get smaller in the middle latitudes, and are eliminated entirely near the poles (which doesn't really help tropical forecasters).

Credit: NESDIS Center for Satellite Application and Research

ASCAT passes have larger coverage gaps since they view the earth differently than OSCAT. ASCAT views the earth in two parallel swaths 550 kilometers wide (opens in a new window), with a nadir (the point on the earth directly beneath the satellite) gap of about 700 kilometers between them. The bottom line is that each ASCAT pass sees much less, but having more than one ASCAT unit orbiting the earth helps to compensate.

You may encounter data from any of these scatterometers or others (scatterometers have even been launched by private sector companies) when looking at past or current tropical cyclones online, so it's important that you understand their basic characteristics and limitations (particularly with respect to problems in areas of heavy rain and any established biases in wind data). If you're interested in viewing scatterometry data for current or past storms, check out the links in the Explore Further section below.

Synthetic-Aperture Radar (SAR)

Much like scatterometry, Synthetic-Aperture Radar (SAR) data comes from active remote sensors (they emit pulses of energy and measure what gets back-scattered), so in that sense SAR and scatterometry have some basic similarities for tropical cyclone detection (faster winds produce a rougher ocean surface, which causes more back-scatter to the satellite). However, SAR can produce imagery of much higher resolution than scatterometry. In addition to tropical cyclone detection, SAR data is also useful for glacier and sea ice monitoring, surveilling coastal erosion, mapping forest cover, and monitoring disasters like floods, volcanic eruptions, and oil spills.

So, how does SAR produce such high-resolution imagery from a satellite? It turns out that the spatial resolution of radar data depends on the wavelength of radiation emitted and the length of the radar antenna. Generally, for any given wavelength, a longer antenna will produce higher spatial resolution. Producing imagery with a resolution of hundreds of meters (compared to 12-25 kilometers for scatterometry) would require a huge antenna, which isn't really practical. But, by combining a rapid sequence of emissions targeted at the same spot from a shorter antenna on a moving satellite, the effect can simulate a much longer antenna and produce a higher-resolution image. It's this "simulation" of a much larger antenna that puts the "synthetic" in synthetic aperture radar. Determining wind direction is a bit tricky, and SAR relies on supplemental wind data (like that from scatterometers) or applying established models of wind flow in tropical cyclones to determine direction.

The end result is that SAR imagery can provide forecasters with a highly-detailed look at a tropical cyclone's wind field (far more detailed than scatterometry), including fierce winds in the eye wall and within individual spiral bands. For example, check out the SAR image of surface winds in Hurricane Melissa on October 27, 2025 (below). Note that while SAR imagery does have moderate issues with rain contamination, it's still able to depict areas near the center of the storm with winds greater than 100 knots.

Credit: NESDIS Center for Satellite Application and Research

Furthermore, because SAR can give forecasters a detailed look at the entire wind field of a tropical cyclone, it can help forecasters analyze the winds in each quadrant of the storm, identifying the radius of maximum wind speed, and the maximum extent of hurricane-force winds, 50-knot winds, and 34-knot winds in each quadrant. The corresponding horizontal wind speed profile for Hurricane Melissa is below. The vertical axis represents wind speed, and the bottom axis represents distance from the center. It's easy to pick out the peak winds in the eye wall, with wind speeds steadily decreasing at greater distances from the center. Each quadrant has a line representing the average winds in that quadrant with distance from the center, but you might also note that each quadrant has a dotted line that represents something called "2 sigma" (which represents "2 standard deviations"). These dashed lines give forecasters an idea of the "high-end" wind speeds at that distance from the center (wind speeds within any quadrant obviously have some variation along a ring at a given radius).

Credit: NESDIS Center for Satellite Application and Research

The graphic showing Melissa's horizontal wind speed profile also provides some text information, which gives us more information about the storm's wind field if we decipher the abbreviations:

• QUA = Quadrant (Northeast, Southeast, Southwest, and Northwest)
• R34, R50, and R64 = The maximum radius of 34-, 50-, and 64-knot winds in each quadrant in nautical miles
• VMAX = The maximum wind speed in the analysis in knots ("mean" = 1-minute average; "peak" = roughly instantaneous)
• RMW = The distance of the location of the maximum wind speed from the center in nautical miles

You might have noticed that some of the maximum radii of the various wind thresholds are listed as zero, which means the maximum radius can't be determined because winds of those speeds extend outside the swath covered by the SAR or they may extend onto land (where there is no data). The estimated "VMAX mean" in this case was 123 knots (142 miles per hour), which is on the low side, considering that the National Hurricane Center listed Melissa as a Category 5 storm with 155-knot maximum sustained wind speed at this time. Why the large discrepancy? Well, In addition to some vulnerability to rain contamination, what the SAR actually detects are essentially instantaneous wind speeds based on the roughness of the ocean surface. But, forecasters classify tropical cyclones using a 1-minute average (some forecasting centers use a 10-minute average) of wind speeds at an altitude of 10 meters. Therefore, SAR winds get converted to 1-minute averages so forecasters can make "apples to apples" comparisons with other types of wind observations. This conversion (which involves statistical correlations with other types of wind observations) results in some spatial averaging of the very high-resolution SAR data (note that the pixel size was listed as 3.0 km in the graph above, even though this SAR data was collected with a resolution of 500 meters). The end result is a more "spatially smoothed" product which can underestimate maximum wind speeds a bit.

Still, the maximum sustained wind speeds retrieved from SAR imagery tend to be closer to reality than what scatterometry can detect. But, SAR data isn't without other limitations. Unlike scatterometers, which collect continuous swaths of data as they orbit Earth, SARs aboard polar-orbiting satellites must be given specific targets to analyze, which means coverage is more limited. For example, check out this map showing SAR acquisitions (opens in a new window) across the Atlantic and Pacific Oceans on a single day from two polar-orbiter missions.

We've covered a lot of information in this section (satellite-based radars are complex topics), but there's also plenty of details that we didn't cover. For folks who are interested, I've packed the Explore Further section below with some additional goodies -- data sources for scatterometry and SAR imagery, a resource for satellite-based surface wind analyses that incorporate several of the remote sensing types that we covered in this lesson, as well as a more in-depth explanation of how scatterometry works. This wraps up our extensive treatment of remote and in-situ sensing in the tropics. I hope that you can now appreciate the importance that remote sensing plays in analyzing tropical cyclones, but even with the application of new technologies and techniques, meteorologists face numerous challenges and can only make best estimates about the current state of tropical cyclones around the world!
