Students will be introduced to ideas of managed retreat and relocation of communities in coastal environments due to repeated impacts from coastal hazards; they will consider the idea of multi-layered defenses and continue to examine the rebuild versus retreat debate.

Learning Objectives

By the end of this module, students should be able to:

• investigate alternative methods for non-structural shoreline hazard mitigation, including managed retreat and multi-layered defenses;
• explore the pros and cons, including cost-benefits of managed retreat case studies and consider examples of communities facing retreat as an option and the factors leading to these decisions;
• analyze hypothetical storm surge impacts on communities on the Louisiana coast using Google Earth and online tools.

Module 9 Roadmap

Questions?

If you have any questions, please use the Canvas email tool to contact the instructor.

After Super Storm Sandy devastated the New Jersey coast and flooded coastal New York, including parts of Manhattan, the debate about rebuilding in place or implementing more sustainable coastal hazard mitigation practices has raged in the U.S.

The traditional practices in the U.S. and in other countries around the world have been to armor the shorelines and replenish beaches to prevent or mitigate erosion. Here in the U.S., recovery from flooding has relied on programs such as the National Flood Insurance Program, the Federal Emergency Management Agency (FEMA), and others, to allow home and business owners to rebuild.

Around the world, there is a growing recognition that hard structure protection and rebuilding in place are not sustainable practices, especially as we become increasingly aware that storms of Sandy and Katrina magnitude may be occurring more frequently with our changing climate. Greater emphasis is now being placed on coastal communities developing better resilience to repeated coastal flood events and sea level rise.

Following the devastation of Sandy in the northeast, some geologists weighed in on the debate to advocate alternatives to rebuilding, such as managed retreat. Here, we will take a look at some ideas from one leading group of coastal scientists, led by Orrin Pilkey, who has spent his career thinking and writing about how to live with dynamic shorelines. Here, he is vocal in making the call that there needs to be a change in policy in the U.S. when it comes to trying to combat catastrophic flooding along our coasts. The case study focusing on rebuilding after Sandy on the Jersey Shore in the reading "Rebuild or Retreat from the Jersey Shore", in which a piece from WNYC follows homeowners debating on the future of their community after Sandy, highlights once more the dichotomy of opinions about the need to retreat from the shoreline versus the need to maintain a lucrative tourism and vacation home economy by holding things in place, at least for now.

Learning Check Point

While this Learning Check Point is not for credit, you will be expected to know the material for the Module 9 Quiz.

Please take a few minutes and answer the questions below.

In the readings on the previous page, much of the thinking was in response to a catastrophic event, such as Hurricane Sandy. On the Jersey Shore, the emphasis has been on building higher dunes to mitigate the problem of coastal hazards threatening human infrastructure. However, as the coastal scientists point out, dunes and other beach features have a tendency to migrate landward. As sea levels rise, this natural migration will accelerate. Options that involve working with these natural processes rather than trying to control them involve a longer-term approach and, as we have seen, can be controversial. We will look at some examples of places where these alternative methods have been employed using the principles of managed retreat or managed realignment, which are in contrast to the more reactionary approach of rebuilding structures in place and protecting them with dunes and other engineered lines of defense.

Managed retreat or managed realignment is a coastal management strategy that allows the shoreline to move inland, instead of attempting to hold the line with structural engineering. At the same time, natural coastal habitat is enhanced seaward of a new line of defense. This approach is relatively new, but is gaining traction among coastal policymakers and managers in the face of increased coastal hazard risks. There is a growing recognition that attempting to “hold the line” in many places is a losing battle.

In many cases of managed retreat, human development is “moved” out of harm’s way and natural areas are restored to enhance their ecosystem services. Typically, flood defenses are set back from the shoreline, and flooding is allowed in the previously defended area. Usually, natural coastal habitat is preserved seaward of the man-made defense, and it provides extra protection or a buffer from flooding.

Managed retreat can be complex and often contentious, as it can include delineating a new line to which structures can be built and home and business owners must be bought out.

Components of managed retreat may include:

• coastal planning;
• relocation and buy-back and buy-out programs;
• regulating types of development allowed;
• designating no-build areas;
• habitat restoration;
• replacement of built environment with green space.

For managed retreat or managed realignment to be successful, a number of criteria or conditions must be met, according to authors Gardiner et al., and Rupp and Nicholls. These are listed below. Perhaps points 4-6 are the criteria that are lacking most often. As we will read in the following case studies, few managed retreat projects are accomplished without controversy and lengthy debate. In places where the level of development on the shoreline is high, managed realignment may not be an option at all, at least in the present conditions.

"Six of the most important conditions are given below (Gardiner et al., 2007; Rupp-Armstrong and Nicholls, forthcoming):

1. presence of coastal defenses
2. availability of low-lying land
3. desire or need to improve flood or coastal defense systems
4. presence of a sustainability-oriented coastal management attitude
5. desire or need to create intertidal habitats
6. societal awareness about the benefits of managed realignment"

In this module, we will explore examples of managed retreat in the U.S. and the U.K. to gain an understanding of the complexities of implementing these projects. We will also consider the discussions of managed retreat options in large cities that are particularly vulnerable to inundation.

In addition, we will look at the dilemma of whole communities facing decisions to relocate in the face of repeated flooding, as well as other mitigation measures such as elevating homes and changing building codes.

Learning Check Point

Objective

Investigate alternative methods for non-structural shoreline hazard mitigation, including managed retreat and multi-layered defenses.

While this Learning Check Point is not for credit, you will be expected to know the material in Module 9 Quiz.

Explore the examples of managed retreat in this ArcGIS Story Map, created by Virginia Institute for Marine Sciences: After reading, consider how you would answer the questions on the cards below. Click "Turn" to see the correct answer on the reverse side of each card.

California Coast

On this page, you will visit two locations on the California coast where the process of managed retreat has been used to address shoreline erosion problems. In the first example, at Ventura Beach near Santa Barbara in southern California, stakeholders worked together to find a solution to a chronic shoreline erosion problem. In the second example, at Pacifica Beach near San Francisco, wetland and riparian habitat were enhanced while at the same time moving structures out of the way of flooding and erosion. As you will see, both examples are in locations that have a medium level of human development, a motivated group of residents, and diverse stakeholders who collaborated to produce and execute a long-term plan. Both areas are in economically healthy areas, which makes raising funds more feasible. However, none of these things are easy to accomplish. These small-scale, less than ten-acre projects serve as valuable learning experiences, but larger-scale projects of similar kinds will likely need to be implemented in the near future, on the scale of, for example, Ocean Beach, which you studied in Module 8 Lab.

In the Ventura Beach example (Climate.gov - Restoring Surfer's Point), Surfers' Point Shoreline Managed Retreat Project is described and illustrated. The article outlines the challenges that had to be overcome to find consensus among the many stakeholders, with the project taking a decade to come to fruition. The stakeholders found that "Focusing on goals they had in common and identifying a bounded problem helped the groups converge on a single solution strategy. The decision to retreat from the ocean—pulling existing structures inland to make room for natural beach processes—allayed concerns that a hardened solution such as a seawall would degrade conditions for surfing, opened opportunities to rehabilitate the beach ecosystem, and enhanced the natural protection of assets on land." In this example, the road and parking areas are moved back and the beach and dunes widened. Volunteers planted native vegetation on the dunes, which serve as natural habitat and protection for the human structures behind the beach.

Restoration and Managed Retreat of Pacifica State Beach examines the Pacifica Beach effort to create climate change coastal community resilience. At Pacifica Beach, the managed realignment project is touted as a success.

The U.K., being a relatively small island nation with a dense population, has a somewhat different approach to coastal management than the U.S. As a result, managed retreat, or managed realignment as it is called in the U.K., has been under serious consideration for a longer period of time than in the U.S. In the winter of 2013 -2014, tremendous storms caused extensive coastal flooding, bringing coastal management to the forefront.

Ecosystem Services of Coastal Marshes

Research shows that natural coastal marsh habitats provide many ecosystem services, including attenuation of storm surge. Attempts to quantify the amount of protection provided by coastal marsh has been elusive, but researchers conclude that “It is clear that coastal management decisions should consider the dynamics of natural coastal systems previous to human modification and be cautious about any actions that erode the natural benefits and ecosystem services provided by salt marshes.” (Shepard et al., 2011). This statement is based on the fact that research strongly indicates that coastal marshes play a very important role in protecting human infrastructure from coastal hazards, including sea level rise and storm surges. (Reference: Shepard CC, Crain CM, Beck MW (2011) The Protective Role of Coastal Marshes: A Systematic Review and Meta-analysis.)

Hurricane Sandy came ashore on the New York/ New Jersey shoreline on October 29, 2012. This late-season storm was dubbed “Superstorm Sandy” because of its massive size and because it coincided with a spring high tide (full moon), which exacerbated the height of the storm surge. The massive storm surge inundated a large swath of the coastline, which includes New York City. Parts of the New York Subway system were flooded, widespread power outages crippled the city, and low-lying neighborhoods were destroyed across the region. The statistics for New York alone sum up the storm’s magnitude:

• 43 deaths - 23 of whom perished on Staten Island.
• $19 billion in damages
• 90,000 buildings in the inundation zone
• Nearly 2 million people without power

The size of the area inundated is illustrated by the FEMA flood map image below.

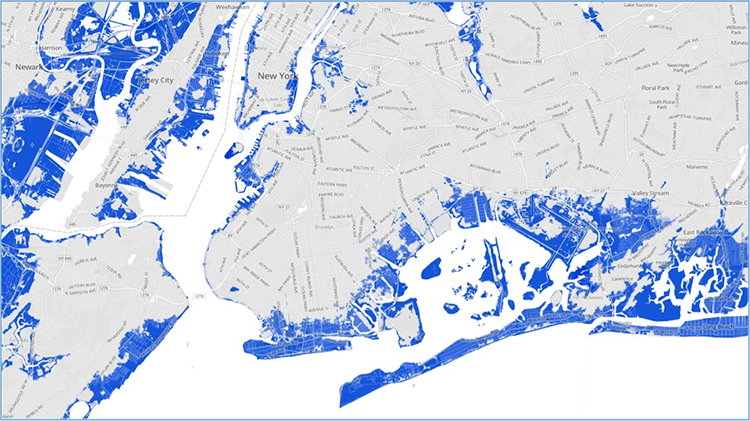

Map of area of inundation by Hurricane Sandy’s storm surge. The map includes parts of both New York (including Manhattan Island) and New Jersey.

Credit: FEMA via WNYC John Keefe, Steven Melendez, and Louise Ma from the WNYC Data News Team. Help with the New York state zone shapefiles from Andrew Hill at Vizzuality. Flooding Survey based on Nov. 11, 2012, interim data from the FEMA Modeling Task Force Hurricane Sandy Impact Analysis, which combines detailed elevation data with U.S. Geological Survey inspections of high watermarks. Flood Zones Coastline inundation zones are calculated by the U.S. Army Corps of Engineers using worst-case storm, wave, and tide calculations, together with elevation data. View the New Jersey hurricane evacuation studies and the New York state evacuation studies. In New York City, the state zones are superseded by the city's own evacuation zones, which draw from the USACE surveys. (Public Domain)

Sandy’s massive impact on such a densely populated and economically important region of the United States precipitated an unprecedented response by area leaders. Both New York Governor Cuomo and former New York City Mayor Bloomberg have taken strides to encourage residents to consider the future of New York’s coast in light of sea level rise predictions.

Former Mayor Bloomberg and the New York City Government were proactive in the development of the NYC: Special Initiative for Rebuilding and Resilience which produced a comprehensive report calling for a “stronger, more resilient New York”. Recommendations found in the report include a multi-faceted approach, including flood protection systems (levees, floodwalls, floodgates, etc.), as well as the designation of certain areas to be set aside as green space. It takes into account the fact that 25% of the city is flood-prone and that sea level rise will only make matters worse.

New York Governor Cuomo, meanwhile, initiated a buyout program for homeowners whose homes were in areas likely to experience repeated flooding. This buyout program has been successful, particularly in Staten Island and in other New York neighborhoods especially hard hit by Sandy. Areas are being returned to green space rather than being rebuilt. Case studies are featured in this module.

A slightly different approach to managed retreat is sometimes necessary in the face of a natural disaster. So, rather than using the types of managed retreat projects described in the previous section, that are carefully planned and take place in discrete locations, moving homes and businesses to safer locations urgently comes to the forefront as we saw in Unit 2. In these cases, decisions are often made quickly and are driven by economic necessity.

Hurricane Sandy Recovery: Staten Island’s Fox Beach Community.

Following a natural disaster caused by a storm such as Sandy, a different approach to retreat is often considered. In this case, rather than using the managed retreat projects described previously in this module, which are carefully planned and take place in discrete locations with a long-term vision, the action of moving homes and businesses to safer locations urgently comes to the forefront. In these cases, decisions are often made quickly and are driven by economic necessity and the availability of funds resulting from the disaster itself.

Learning Check Point

Government Buy-Out of At-Risk Coastal Properties – New York Example following Sandy

Objective: Investigate alternative methods for non-structural shoreline hazard mitigation, including managed retreat and multi-layered defenses.

Although this Learning Check Point is not for credit, you will be expected to know the material in the Module 9 Quiz. Once you read and understand the articles referenced above as well as the excerpt below, take a few minutes to answer the questions about the New York Home Buyout Program in the space provided.

Government Buy-Out of At-Risk Coastal Properties – New York Example following Sandy

Excerpted from a March 2013 press release from New York Governor Andrew Cuomo’s Office:

Recreate NY Smart Home Buyout Program - $171 million: Certain areas are at high risk for repeated flooding, causing damage to homes and risking the lives of residents and emergency responders. To reduce those risks and provide residents with an opportunity to leave their properties, New York State will offer voluntary Buyouts for homes that were:

• substantially damaged inside the 500-year flood plain, or
• located within designated buyout areas where damage has occurred and where property may be susceptible to future damage due to sea level rise and other factors. These enhanced buyout areas will be selected in consultation with county and local government officials.
• In very high-risk areas, there will be a prohibition on rebuilding and these areas will be used as buffer zones. Under the state's proposal, and subject to approval by HUD, re-development of property outside of the 100-year floodplain that is acquired through a buyout would be permitted, so long as the new structure is built to mitigate future flood impact. Homeowners will be notified if they are eligible for a buyout after HUD has approved this plan.

Definition for "500-year flood plain" and "100-year flood plain"

A "100-year flood" is not a flood that will occur once every 100 years. Instead, it should be thought of as flood elevation that has a 1-percent chance of being equaled or exceeded each year. Therefore, a 100-year flood could occur more than once in a relatively short period of time. A 500-year flood elevation has a 0.2% chance of being equaled or exceeded in any given year.

If the trend of more frequent storms and increased sea level rise continues, these types of solutions will likely become more common. Who will foot the bill to move coastal communities? Will it happen only after disasters, or in a more planned way? In the case of Isle de Jean Charles, government funding was found in the form of a grant awarded to relocate the entire community. However, many challenges have plagued even this small-scale relocation project. We saw that long-term planning was lacking in Ocean Beach, CA. What will the approaches to these dilemmas be in 10 or 15 years from today? These are questions for us to ponder at this point. Policymakers, planners, community leaders, and politicians will have to quickly find solutions to these challenges for many communities soon.

Coastal Louisiana is home to hundreds of small communities, as well as several larger towns (such as Lafitte, Houma, and Thibodaux), that are not protected by the large federally subsidized hurricane protection levees such as those that surround New Orleans. The new hurricane protection system for the area, that is currently under construction, cannot incorporate all of these communities, although the Morganza to the Gulf levee* when it is completed, will include the larger towns listed here. One community that will not be included is the small town of Isle de Jean Charles in Terrebonne Parish. This small, mostly Native American community is grappling with relocating and creating a new community after receiving federal funds for resettlement.

Video: Isle de Jean Charles from the documentary LAST STAND ON THE ISLAND (11:23)

As the short film below will demonstrate, not all the residents agree with Chief Naquin’s decision.

Isle de Jean Charles Resettlement Story

The Isle de Jean Charles residents have long been aware that the island's days are numbered as sea level rises and erosion of the marshes continues. Their houses are flooded and damaged regularly. Even so, many residents are resistant to the idea of leaving the island because of their strong attachment to the land and the way of life, including living off the water by fishing, shrimping, and crabbing. In 2016, the community of Isle de Jean Charles was the recipient of a $48 million grant from the Department of Urban Development - HUD to relocate the families of the "Island" to a safer location, 40 miles inland near the community of Schriever. This is the first time a community has received federal funding and support for a relocation of this kind. The resettlement plan, which is still in progress, has not progressed smoothly. The original intention of tribal Chief Albert Naquin was to keep the tribal community intact and create a new community that allowed displaced members who had previously left the island to rejoin the community. There are many details and concerns to be worked out between the tribe and the state. To date, 23 families have committed to relocating to the new community. Others are staying behind. The actual move is still several years ahead. The difficulties encountered highlight how challenging relocating a community can be, especially if the community wishes to stay intact. The dilemmas and challenges met by Isle de Jean Charles are likely to play out in many places as sea level rise claims other coastal communities.

Learning Check Point

The resettlement website has details of this plan and a video in which Chief Naquin and others outline the plan. Read the articles and watch the video on Isle de Jean Charles to help you understand the dilemma faced by such a small, tight-knit community. Consider how you would answer the questions on the cards below. Click "Turn" to see the correct answer on the reverse side of each card.

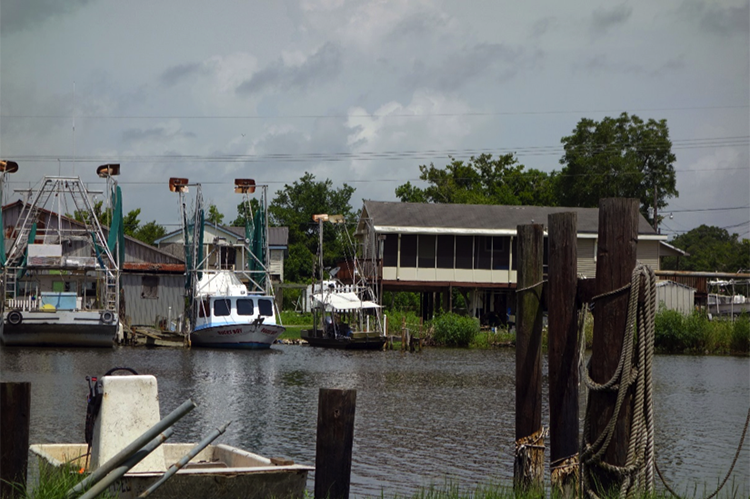

The Community of Isle de Jean Charles, LA.

Credit: Gary Allen

Louisiana is an example of a very low-profile coastal area characterized by relatively newly deposited delta sediment (less than 10 thousand years) of the Mississippi River delta. Land loss has been ongoing at a rapid pace over the past century, peaking in the late 20th century, and is currently occurring at a rate of approximately 10 – 20 square miles per year. The communities in coastal Louisiana are all at risk of storm surge inundation, to varying degrees. We have already looked at New Orleans in detail and seen that it has a system of flood defenses recently upgraded after Hurricane Katrina. Many smaller communities that are located close to the Gulf of Mexico have no protection from federally funded flood protection. Many have levees built and maintained at a parish level. New federally-funded hurricane protection levees, such as the Morganza to the Gulf levee system are planned to protect towns such as Houma and Thibodaux. It is approximately 100-mile-long levee that averages 6 meters (20 ft) in height. But some small communities such as Cocodrie and Isle De Jean Charles will not be within the footprint of this levee. It is not feasible in terms of available funding and engineering options to protect some communities. This presents a dilemma for many communities.

Louisiana's Coastal Master Plan and Multi-layered Protection

Levees are not the only form of protection for coastal communities. Louisiana’s Coastal Master Plan incorporates the concept of a multi-layered defense system that includes maximizing the flood mitigation potential of barrier islands, marsh, and natural ridge restoration projects, (many of which involve pumping sediment from a designated location, often from the bottom of the Gulf of Mexico), as well as the use of fresh water and sediment diversions from the Mississippi River to build new land.

What is Multi-layered Protection?

A clear explanation of the concept of Multi-layered protection is presented by the Lake Pontchartrain Basin Foundation outlined at Multiple Lines of Defense Strategy. This conceptual approach identifies eleven “lines of defense”, which work in concert to ameliorate the effects of a storm surge by creating friction and reducing storm surge and wave height as it moves inland across the low-lying delta land. This plan was published and incorporated into Louisiana's Coastal Master Plan in the years after Hurricane Katrina. The eleven layers of protection are shown in the diagram below:

• Offshore shelf
• Barrier islands
• Sound
• Marsh land bridge
• Natural ridge
• Highway
• Flood gate
• Levee
• Pump station
• Elevated buildings
• Evacuation route

Multiple lines of defense schematic.

Credit: Lopez, John A., 2006, The Multiple Lines of Defense Strategy to Sustain Coastal Louisiana, Lake Pontchartrain Basin Foundation, Metairie, LA January 2006.

Video: FPA East Virtual Tour (16:06)

This is a virtual tour of the 17th St Canal Pump Station and the Surge Barrier in New Orleans. The first part focuses on Hurricane Katrina's destruction, while the second part showcases the flood protection system: Hurricane Storm Damage and Risk Reduction System (HSDRRS).

Learning Check Point

Please take a few moments to think about what you just learned then answer the following questions to test your knowledge.

Introduction

The objective of this Lab is to explore a low profile coastal area in Louisiana and use tools in Google Earth to measure the slope and evaluate the protective potential of the coastal wetlands and man-made levees separating the coastal communities from the Gulf of Mexico

For this Lab, you will be using Google Earth to explore the coastal area of Isle de Jean Charles and use data from a storm surge model to analyze the potential impacts of storm surges on this and nearby communities. You will consider the protective functions of the coastal marshes as well as the new hurricane levee that is designed to protect some communities but not Isle de Jean Charles.

Lab Overview

After you thoroughly read the U.S. Army Corps of Engineers fact sheet about the Morganza to the Gulf levee project (mentioned above), follow the steps in the Module 9 Lab Worksheet below.

Downloads/Resources

• Module 9 Lab Worksheet

Instructions

Before you begin the Lab, you will need to download the Lab worksheet. We advise you to either print or download/save the Lab worksheet, as it contains the steps you need to take to complete the Lab in Google Earth. In addition, it contains prompts for questions that you should take note of (by writing down or typing in) as you work through the Lab.

Once you have worked through all of the steps, you will go to the Module 9 Lab. to complete the Lab by answering multiple-choice questions. The answers to questions on this Lab worksheet will match choices in the multiple-choice questions. Submit the quiz for credit.

In Module 9, you investigated alternatives for coastal hazard mitigation, including managed retreat and multi-layered protection. You considered the pros and cons of managed retreat versus traditional solutions such as structural protection. You used online tools to make measurements of bed slope on the Louisiana coast in order to estimate storm surge impacts on a real community. You took into consideration the physical, social, and economic challenges that face coastal managers today to make recommendations for the future for a coastal community in Louisiana.

Reminder - Complete all of the Module 9 tasks!

You have reached the end of Module 9! Double-check the Module 9 Roadmap to make sure you have completed all of the activities listed there before you begin Module 10.
